CLJ-B Cylindrical Proximity Sensor CLJ-B10M Cylindrical Proximity...

● Inductive proximity sensors detect metal.

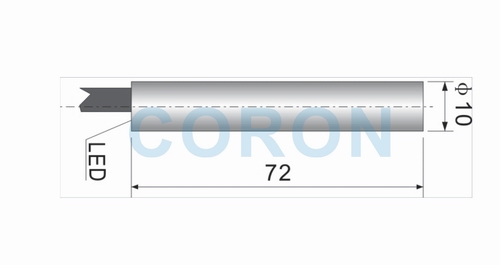

●φ10 cylindrical, nickel-copper alloy case, 2 meter lead.

●Buried type, detection distance 2mm.

●NPN, PNP, DC two-wire, AC two-wire output.

●Adoption of dedicated IC to realizeexcellent anti-interference performance.

● Red LEDindicator shows the working status of the sensor.

● Highdetection accuracy and fast response time.

● Withpolarity protection and short-circuit protection.

● Long lifeand high reliability.

●Widely used in all kinds of machinery, automation equipmentpositioning, limit, detection and so on.

Online Consultation

Form

φ10

Installation form

flush-mounted

Detection distance

2mm

Setting distance

0-1.6mm

NPN 3-wire/4-wire

NO

CLJ-B10M-2ANA

NC

CLJ-B10M-2ANB

N+C

CLJ-B10M-2ANC

PNP 3-wire/4-wire

NO

CLJ-B10M-2APA

NC

CLJ-B10M-2APB

N+C

CLJ-B10M-2APC

Supply voltage

10-30VDC

Current consumption

≤15mA

Output current

≤200mA

Output voltage drop

≤1.5V

Response frequency

≤800Hz

 DC 2-wire

NO

CLJ-B10M-2ALA

NC

CLJ-B10M-2ALB

Supply voltage

 10-30VDC

Current consumption

≤1mA

Output current

≤50mA

Output voltage drop

≤5V

Response frequency

≤400Hz

 AC 2-wire

NO

CLJ-B10M-2GKA

NC

CLJ-B10M-2GKB

Supply voltage

 90-250VAC

Current consumption

≤2mA

Output current

≤300mA

Output voltage drop

≤8V

Response frequency

≤25Hz

Repeatability

<1%

Output indicator

Red LED

Environmental temperature

-25℃-+75℃

Environmental humidity

35-95%RH

Shell material

Nickel-copper alloy

Connection method

2m cable

Protection class

IP67
