CLJ-C Angular Cylindrical Proximity Sensor CLJ-C17 Angular Cylindrical Pr...

● Inductive proximity sensors detect metal.

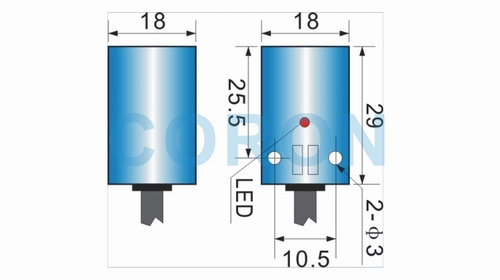

●Angular cylindrical □ 17 x 17 mm, plastic case, 2meter leads.

● Non-buried,detection distance 5mm.

●NPN, PNP, DC two-wire output.

●Adoption of dedicated IC to realizeexcellent anti-interference performance.

● Red LEDindicator shows the working status of the sensor.

● Highdetection accuracy and fast response time.

● Withpolarity protection and short-circuit protection.

● Long lifeand high reliability.

●Widely used in all kinds of machinery, automation equipmentpositioning, limit, detection and so on.

Online Consultation

Form

□17×17

Installation form

Unburied

Detection distance

5mm

Setting distance

0-4mm

NPN 3-wire

NO

CLJ-C17-5ANA

NC

CLJ-C17-5ANB

N+C

 ------

NPN 3-wire

NO

CLJ-C17-5APA

NC

CLJ-C17-5APB

N+C

 ------

Supply voltage

10-30VDC

Current consumption

≤15mA

Output current

≤200mA

Output voltage drop

≤1.5V

Response frequency

≤500Hz

DC 2-wire

NO

CLJ-C17-5ALA

NC

CLJ-C17-5ALB

Supply voltage

 10-30VDC

Current consumption

≤1mA

Output current

≤50mA

Output voltage drop

≤5V

Response frequency

≤200Hz

Repeatability

<1%

Output indicator

Red LED

Environmental temperature

-25℃-+75℃

Environmental humidity

35-95%RH

Housing material

ABS engineering plastics

Connection method

2m cable

Protection class

IP67
