CLJ-C Angular Cylindrical Proximity Sensor CLJ-C18-G3 Angular Cylindrica...

● Inductive proximity sensors detect metal.

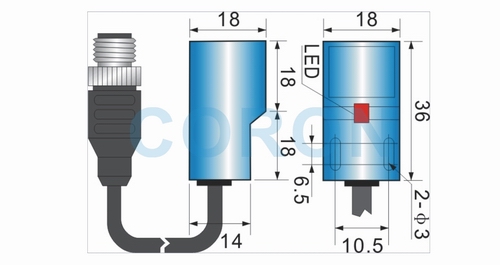

● Angular cylindrical □ 18 x 18 mm, plastic housing, lead 30 cm withM12 connector.

● Non-buried, detection distance 5mm.

●NPN, PNP, DC two-wire output.

●Adoption of a dedicated IC torealize excellent anti-interference performance.

● Red LED indicator shows the working status of thesensor.

● High detection accuracy and fast response time.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Widely used in all kinds of machinery, automationequipment positioning, limit, detection and so on.

Online Consultation

Form

□18×18

Installation form

Unburied

Detection distance

5mm

Setting distance

0-4mm

NPN 3-wire

NO

CLJ-C18-5ANA-G3

NC

CLJ-C18-5ANB-G3

N+C

 ------

NPN 3-wire

NO

CLJ-C18-5APA-G3

NC

CLJ-C18-5APB-G3

N+C

 ------

Supply voltage

10-30VDC

Current consumption

≤15mA

Output current

≤200mA

Output voltage drop

≤1.5V

Response frequency

≤500Hz

DC 2-wire

NO

CLJ-C18-5ALA-G3

NC

CLJ-C18-5ALB-G3

Supply voltage

 10-30VDC

Current consumption

≤1mA

Output current

≤50mA

Output voltage drop

≤5V

Response frequency

≤200Hz

Repeatability

<1%

Output indicator

Red LED

Environmental temperature

-25℃-+75℃

Environmental humidity

35-95%RH

Shell material

ABS engineering plastics

Connection method

Leads 30cm with M12 connector

Protection class

IP67
