CLJ-C Angular Cylindrical Proximity Sensor CLJ-C25 Angular Cylindrical Pr...

● Inductive proximity sensors detect metal.

●Angularcylindrical □ 25 x 25mm, plastic case, 2 meter leads.

● Non-buried, detection distance 8mm.

●NPN, PNP, DC two-wire, AC two-wire outputs.

●Adoption of a dedicated IC torealize excellent anti-interference performance.

● Red LED indicator shows the working status of the sensor.

● High detection accuracy and fast response time.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Widely used in all kinds of machinery, automationequipment positioning, limit, detection and so on.

Online Consultation

Model parameter

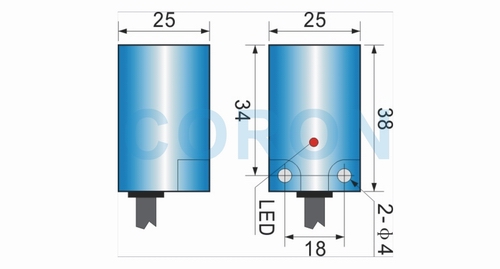

Outline size
Wiring diagram

Form		□25×25
Installation form		Unburied
Detection distance		5mm
Setting distance		0-4mm
NPN 3-wire/4-wire	NO	CLJ-C25-8ANA
	NC	CLJ-C25-8ANB
	N+C	CLJ-C25-8ANC
PNP 3-wire/4-wire	NO	CLJ-C25-8APA
	NC	CLJ-C25-8APB
	N+C	CLJ-C25-8APC
Supply voltage		10-30VDC
Current consumption		≤15mA
Output current		≤200mA
Output voltage drop		≤1.5V
Response frequency		≤500Hz
DC2-wire	NO	CLJ-C25-8ALA
	NC	CLJ-C25-8ALB
Supply voltage		10-30VDC
Current consumption		≤1mA
Output current		≤50mA
Output voltage drop		≤5V
Response frequency		≤200Hz
AC 2-wire	NO	CLJ-C25-8GKA
	NC	CLJ-C25-8GKB
Supply voltage		90-250VAC
Current consumption		≤2mA
Output current		≤300mA
Output voltage drop		≤8V
Response frequency		≤25Hz
Repeatability		<1%
Output indicator		Red LED
Environmental temperature		-25℃-+75℃
Environmental humidity		35-95%RH
Shell material		ABS engineering plastics
Connection method		2m cable
Protection class		IP67
