CLJ-C Angular Cylindrical Proximity Sensor CLJ-C30 Angular Cylindrical P...

● Inductive proximity sensors detect metal.

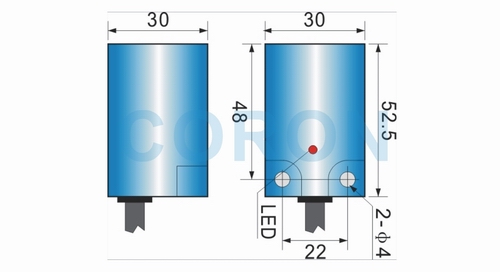

●Angularcylindrical □30×30mm, plastic case, 2m lead.

● Non-buried, detection distance 10mm.

●NPN, PNP, DC 2-wire, AC 2-wire, AC/DC 2-wire outputs.

●Adoption of dedicated IC to realizeexcellent anti-interference performance.

● Red LED indicator shows the working status of thesensor.

● High detection accuracy and fast response time.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Widely used in all kinds of machinery,automation equipment positioning, limit, detection, etc. Online Consultation

Form

□30×30

Installation form

Unburied

Detection distance

10mm

Setting distance

0-8mm

NPN 3-wire/4-wire

NO

CLJ-C30-10ANA

NC

CLJ-C30-10ANB

N+C

CLJ-C30-10ANC

PNP 3-wire/4-wire

NO

CLJ-C30-10APA

NC

CLJ-C30-10APB

N+C

CLJ-C30-10APC

Supply voltage

10-30VDC

Current consumption

≤15mA

Output current

≤200mA

Output voltage drop

≤1.5V

Response frequency

≤400Hz

DC 2-wire

NO

CLJ-C30-10ALA

NC

CLJ-C30-10ALB

Supply voltage

 10-30VDC

Current consumption

≤1mA

Output current

≤50mA

Output voltage drop

≤5V

Response frequency

≤200Hz

AC 2-wire

NO

CLJ-C30-10GKA

NC

CLJ-C30-10GKB

Supply voltage

 90-250VAC

Current consumption

≤2mA

Output current

≤300mA

Output voltage drop

≤8V

Response frequency

≤25Hz

 AC/DC 2-wire

NO

CLJ-C30-10HMA

NC

CLJ-C30-10HMB

Supply voltage

20-250VAC/DC

Repeatability

<1%

Output indicator

Red LED

Environmental temperature

-25℃-+75℃

Environmental humidity

35-95%RH

Housing material

ABS engineering plastics

Connection method

2m cable

Protection class

IP67
