CLJ-C Angular Cylindrical Proximity Sensor CLJ-C40 Angular Cylindrical P...

● Inductive proximity sensors detect metal.

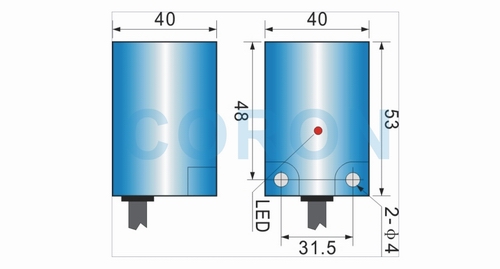

●Angularcylindrical □40×40mm, plastic case, 2m lead.

● Non-buried, detection distance 20mm.

●NPN, PNP, DC 2-wire, AC 2-wire, AC/DC 2-wire outputs.

●Adoption of a dedicated IC torealize excellent anti-interference performance.

● Red LED indicator shows the working status of thesensor.

● High detection accuracy and fast response time.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Widely used in all kinds of machinery, automationequipment positioning, limit, detection and so on.

Online Consultation

Form

□40×40

Installation form

Unburied

Detection distance

20mm

Setting distance

0-16mm

NPN 3-wire/4-wire

NO

CLJ-C40-20ANA

NC

CLJ-C40-20ANB

N+C

CLJ-C40-20ANC

PNP 3-wire/4-wire

NO

CLJ-C40-20APA

NC

CLJ-C40-20APB

N+C

CLJ-C40-20APC

Supply voltage

10-30VDC

Current consumption

≤15mA

Output current

≤200mA

Output voltage drop

≤1.5V

Response frequency

≤400Hz

DC 2-wire

NO

CLJ-C40-20ALA

NC

CLJ-C40-20ALB

Supply voltage

 10-30VDC

Current consumption

≤1mA

Output current

≤50mA

Output voltage drop

≤5V

Response frequency

≤200Hz

AC 2-wire

NO

CLJ-C40-20GKA

NC

CLJ-C40-20GKB

Supply voltage

 90-250VAC

Current consumption

≤2mA

Output current

≤300mA

Output voltage drop

≤8V

Response frequency

≤25Hz

 AC/DC 2-wire

NO

CLJ-C40-20HMA

NC

CLJ-C40-20HMB

Supply voltage

20-250VAC/DC

Repeatability

<1%

Output indicator

Red LED

Environmental temperature

-25℃-+75℃

Environmental humidity

35-95%RH

Shell material

ABS engineering plastics

Connection method

2m cable

Protection class

IP67

CLJ-C Angular Cylindrical Proximity Sensor ( 0 )
