CLJ-C Angular Cylindrical Proximity Sensor CLJ-C40-G3 Angular Cylindrical...

● Inductive proximity sensors detect metal.

● Angular cylindrical □ 40 x 40 mm, plastic housing, lead 30 cm withM12 connector.

● Non-buried, detection distance 20mm.

●NPN, PNP, DC two-wire output.

●Adoption of dedicated IC to realizeexcellent anti-interference performance.

● Red LED indicator shows the working status of thesensor.

● High detection accuracy and fast response time.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Widely used in all kinds of machinery, automationequipment positioning, limit, detection and so on.

Online Consultation

Model parameter

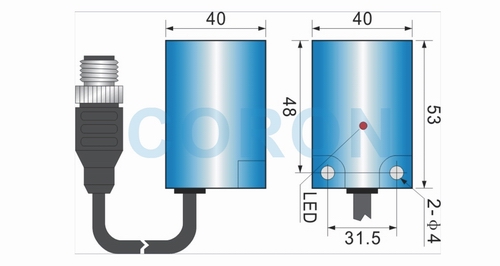

Outline size
Wiring diagram

Form		□40×40-G3
Installation form		Unburied
Detection distance		20mm
Setting distance		0-16mm
NPN 3-wire/4-wire	NO	CLJ-C40-20ANA-G3
	NC	CLJ-C40-20ANB-G3
	N+C	CLJ-C40-20ANC-G3
PNP 3-wire/4-wire	NO	CLJ-C40-20APA-G3
	NC	CLJ-C40-20APB-G3
	N+C	CLJ-C40-20APC-G3
Supply voltage		10-30VDC
Current consumption		≤15mA
Output current		≤200mA
Output voltage drop		≤1.5V
Response frequency		≤400Hz
DC 2-wire	NO	CLJ-C40-20ALA-G3
	NC	CLJ-C40-20ALB-G3
Supply voltage		10-30VDC
Current consumption		≤1mA
Output current		≤50mA
Output voltage drop		≤5V
Response frequency		≤200Hz
Repeatability		<1%
Output indicator		Red LED
Environmental temperature		-25℃-+75℃
Environmental humidity		35-95%RH
Housing material		ABS engineering plastics
Connection method		Leads 30cm with M12 connector
Protection class		IP67
