CLJ-D Flat Proximity Sensor CLJ-D18 Flat Proximity Sensor...

● Inductive proximity sensors detect metal.

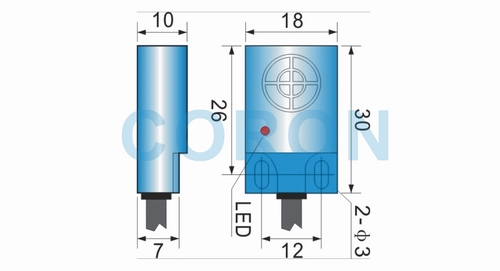

●Angularcylindrical □18×10mm, plastic case, 2m lead.

● Non-buried, detection distance 5mm.

●NPN, PNP, DC two-wire output.

●Adoption of dedicated IC to realizeexcellent anti-interference performance.

● Red LED indicator shows the working status of thesensor.

● High detection accuracy and fast response time.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Widely used in all kinds of machinery, automationequipment positioning, limit, detection and so on.

Online Consultation

Form

D18

Installation form

Unburied

Detection distance

5mm

Setting distance

0-4mm

NPN 3-wire

NO

CLJ-D18-5ANA

NC

CLJ-D18-5ANB

N+C

 ------

NPN 3-wire

NO

CLJ-D18-5APA

NC

CLJ-D18-5APB

N+C

 ------

Supply voltage

10-30VDC

Current consumption

≤15mA

Output current

≤200mA

Output voltage drop

≤1.5V

Response frequency

≤500Hz

DC 2-wire

NO

CLJ-D18-5ALA

NC

CLJ-D18-5ALB

Supply voltage

 10-30VDC

Current consumption

≤1mA

Output current

≤50mA

Output voltage drop

≤5V

Response frequency

≤200Hz

Repeatability

<1%

Output indicator

Red LED

Environmental temperature

-25℃-+75℃

Environmental humidity

35-95%RH

Housing material

ABS engineering plastics

Connection method

2m cable

Protection class

IP67
