CLJ-D Flat Proximity Sensor CLJ-D25-G3 Flat Proximity Sen...

● Inductive proximity sensors detect metal.

● Angular cylindrical □ 25 x 10 mm, plastic housing, lead 30 cm withM12 connector.

● Non-buried, detection distance 8mm.

●NPN, PNP, DC two-wire output.

●Adoption of a dedicated IC torealize excellent anti-interference performance.

● Red LED indicator shows the working status of the sensor.

● High detection accuracy and fast response time.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Widely used in all kinds of machinery, automationequipment positioning, limit, detection and so on.

Online Consultation

Model parameter

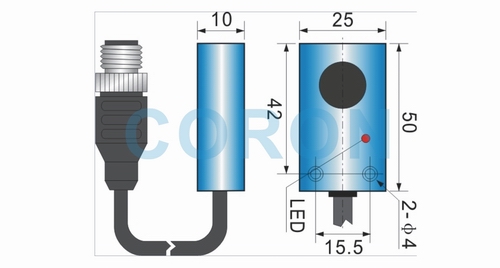

Outline size
Wiring diagram

Form		D25-G3
Installation form		Unburied
Detection distance		8mm
Setting distance		0-6.4mm
NPN 3-wire	NO	CLJ-D25-8ANA-G3
	NC	CLJ-D25-8ANB-G3
	N+C	------
NPN 3-wire	NO	CLJ-D25-8APA-G3
	NC	CLJ-D25-8APB-G3
	N+C	------
Supply voltage		10-30VDC
Current consumption		≤15mA
Output current		≤200mA
Output voltage drop		≤1.5V
Response frequency		≤500Hz
DC 2-wire	NO	CLJ-D25-8ALA-G3
	NC	CLJ-D25-8ALB-G3
Supply voltage		10-30VDC
Current consumption		≤1mA
Output current		≤50mA
Output voltage drop		≤5V
Response frequency		≤200Hz
Repeatability		<1%
Output indicator		Red LED
Environmental temperature		-25℃-+75℃
Environmental humidity		35-95%RH
Shell material		ABS engineering plastics
Connection method		2m cable
Protection class		IP67
