CLJ-E Flat Proximity Sensor CLJ-E80 Flat Mount Proximity ...

● Inductive proximity sensors detect metal.

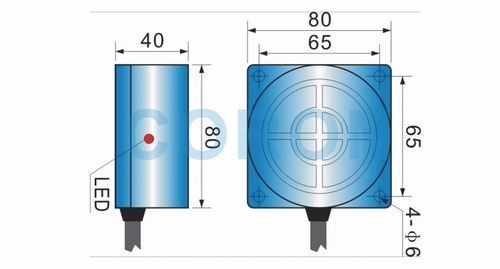

●Flatmounting shape φ80mm, plastic case, 2m lead.

● Non-buried, detection distance 50mm.

●NPN, PNP, DC 2-wire, AC 2-wire, AC/DC 2-wire outputs.

●Adoption of dedicated IC to realizeexcellent anti-interference performance.

● Red LED indicator shows the working status of thesensor.

● High detection accuracy and fast response time.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Widely used in all kinds of machinery, automationequipment positioning, limit, detection and so on.

Online Consultation

Form

E80

Installation form

Unburied

Detection distance

50mm

Setting distance

0-40mm

NPN 3-wire/4-wire

NO

CLJ-E80-50ANA

NC

CLJ-E80-50ANB

N+C

CLJ-E80-50ANC

PNP 3-wire/4-wire

NO

CLJ-E80-50APA

NC

CLJ-E80-50APB

N+C

CLJ-E80-50APC

Supply voltage

10-30VDC

Current consumption

≤15mA

Output current

≤200mA

Output voltage drop

≤1.5V

Response frequency

≤40Hz

DC 2-wire

NO

CLJ-E80-50ALA

NC

CLJ-E80-50ALB

Supply voltage

 10-30VDC

Current consumption

≤1mA

Output current

≤50mA

Output voltage drop

≤5V

Response frequency

≤20Hz

AC 2-wire

NO

CLJ-E80-50GKA

NC

CLJ-E80-50GKB

Supply voltage

 90-250VAC

Current consumption

≤2mA

Output current

≤300mA

Output voltage drop

≤8V

Response frequency

≤5Hz

AC/DC 2-wire

NO

CLJ-E80-50HMA

NC

CLJ-E80-50HMB

Supply voltage

20-250VAC/DC

Repeatability

<1%

Output indicator

Red LED

Environmental temperature

-25℃-+75℃

Environmental humidity

35-95%RH

Housing material

fiberglass

Connection method

2m cable

Protection class

IP67
