CLJ-E Flat Proximity Sensor CLJ-E120 Flat Mount Proximity ...

● Inductive proximity sensors detect metal.

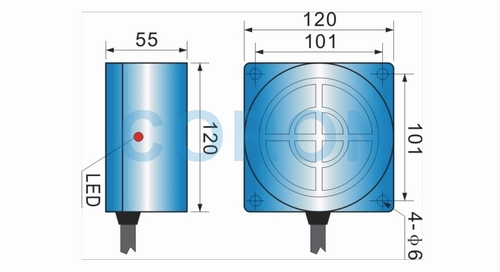

●Flatmounting shape φ120mm, plastic case, 2m lead.

● Non-buried type, detection distance 70mm.

●NPN, PNP, DC 2-wire, AC 2-wire, AC/DC 2-wire outputs.

●Adoption of dedicated IC to realizeexcellent anti-interference performance.

● Red LED indicator shows the working status of thesensor.

● High detection accuracy and fast response time.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Widely used in all kinds of machinery,automation equipment positioning, limit, detection and so on Online Consultation

Form

E120

Installation form

Unburied

Detection distance

70mm

Setting distance

0-56mm

NPN 3-wire/4-wire

NO

CLJ-E120-70ANA

NC

CLJ-E120-70ANB

N+C

CLJ-E120-70ANC

PNP 3-wire/4-wire

NO

CLJ-E120-70APA

NC

CLJ-E120-70APB

N+C

CLJ-E120-70APC

Supply voltage

10-30VDC

Current consumption

≤15mA

Output current

≤200mA

Output voltage drop

≤1.5V

Response frequency

≤20Hz

DC 2-wire

NO

CLJ-E120-70ALA

NC

CLJ-E120-70ALB

Supply voltage

 10-30VDC

Current consumption

≤1mA

Output current

≤50mA

Output voltage drop

≤5V

Response frequency

≤5Hz

AC 2-wire

NO

CLJ-E120-70GKA

NC

CLJ-E120-70GKB

Supply voltage

 90-250VAC

Current consumption

≤2mA

Output current

≤300mA

Output voltage drop

≤8V

Response frequency

≤5Hz

AC/DC 2-wire

NO

CLJ-E120-70HMA

NC

CLJ-E120-70HMB

Supply voltage

20-250VAC/DC

Repeatability

<1%

Output indicator

Red LED

Environmental temperature

-25℃-+75℃

Environmental humidity

35-95%RH

Shell material

fiberglass

Connection method

2m cable

Protection class

IP67
