CLJ-F Small Size Proximity Sensor CLJ-F8 Small Size Proximity S...

● Inductive proximity sensors detect metal.

● Ultra-small volume shape □ 8 x 8mm, plastic case, 2 meter lead.

● Non-buried, detection distance 2.5mm.

●NPN, PNP, DC two-wire output.

●Adoption of a dedicated IC torealize excellent anti-interference performance.

● Red LED indicator shows the working status of thesensor.

● High detection accuracy and fast response time.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Widely used in all kinds of machinery, automationequipment positioning, limit, detection and so on.

Online Consultation

Model parameter

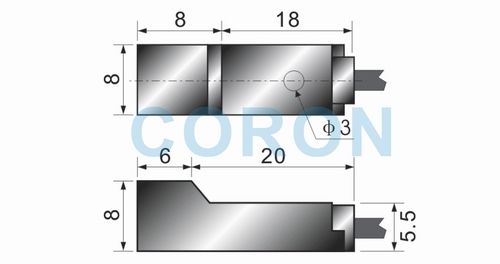

Outline size
Wiring diagram

Form		F8
Installation form		Unburied
Detection distance		2.5mm
Setting distance		0-2mm
NPN 3-wire	NO	CLJ-F8-2.5ANA
	NC	CLJ-F8-2.5ANB
	N+C	------
NPN 3-wire	NO	CLJ-F8-2.5APA
	NC	CLJ-F8-2.5APB
	N+C	------
Supply voltage		10-30VDC
Current consumption		≤15mA
Output current		≤200mA
Output voltage drop		≤1.5V
Response frequency		≤1500Hz
DC 2-wire	NO	CLJ-F8-2.5ALA
	NC	CLJ-F8-2.5ALB
Supply voltage		10-30VDC
Current consumption		≤1mA
Output current		≤50mA
Output voltage drop		≤5V
Response frequency		≤200Hz
Repeatability		<1%
Output indicator		Red LED
Environmental temperature		-25℃-+75℃
Environmental humidity		35-95%RH
Shell material		ABS engineering plastics
Connection method		2m cable
Protection class		IP67
