CLJ-G Combined Proximity Sensor CLJ-G40-G Combined Proximity ...

● Inductive proximity sensors detect metal.

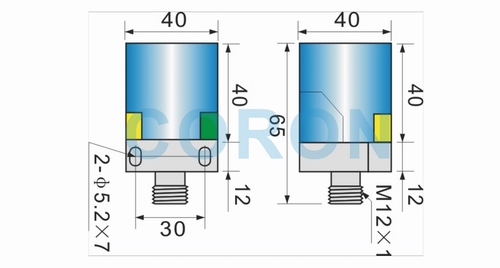

● Combination shape □ 40 x 40 mm, plastic housing, M12 connector.

● Non-buried, detection distance 20mm.

●NPN, PNP, DC 2-wire, AC 2-wire, AC/DC 2-wire outputs.

●Adoption of a dedicated IC torealize excellent anti-interference performance.

● Red LED indicator shows the working status of thesensor.

● High detection accuracy and fast response time.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Widely used in all kinds of machinery, automationequipment positioning, limit, detection and so on.

Online Consultation

Form

G40-G

Installation form

Unburied

Detection distance

20mm

Setting distance

0-16mm

NPN 3-wire/4-wire

NO

CLJ-G40-20ANA-G

NC

CLJ-G40-20ANB-G

N+C

CLJ-G40-20ANC-G

PNP 3-wire/4-wire

NO

CLJ-G40-20APA-G

NC

CLJ-G40-20APB-G

N+C

CLJ-G40-20APC-G

Supply voltage

10-30VDC

Current consumption

≤15mA

Output current

≤200mA

Output voltage drop

≤1.5V

Response frequency

≤80Hz

DC 2-wire

NO

CLJ-G40-20ALA-G

NC

CLJ-G40-20ALB-G

Supply voltage

 10-30VDC

Current consumption

≤1mA

Output current

≤50mA

Output voltage drop

≤5V

Response frequency

≤20Hz

AC 2-wire

NO

CLJ-G40-20GKA-G

NC

CLJ-G40-20GKB-G

Supply voltage

 90-250VAC

Current consumption

≤2mA

Output current

≤300mA

Output voltage drop

≤8V

Response frequency

≤10Hz

AC/DC 2-wire

NO

CLJ-G40-20HMA-G

NC

CLJ-G40-20HMB-G

Supply voltage

20-250VAC/DC

Repeatability

<1%

Output indicator

Red LED

Environmental temperature

-25℃-+75℃

Environmental humidity

35-95%RH

Shell material

ABS engineering plastics

Connection method

M12 connector

Protection class

IP67
