CLJ-G Combined Proximity Sensor CLJ-G80-A Combined Proximity S...

● Inductive proximity sensors detect metal.

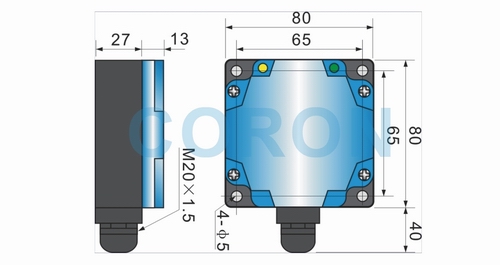

●Combinationtype □80×80mm, plastic housing, internalterminal connection.

● Non-buried, detection distance 50mm.

●NPN, PNP, DC 2-wire, AC 2-wire, AC/DC 2-wire outputs.

●Adoption of a dedicated IC torealize excellent anti-interference performance.

● Red LED indicator shows the working status of thesensor.

● High detection accuracy and fast response time.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Widely used in all kinds of machinery, automation equipmentpositioning, limit, detection and so on.

,

Online Consultation

Form

G80-A

Installation form

Unburied

Detection distance

50mm

Setting distance

0-40mm

NPN 3-wire/4-wire

NO

CLJ-G80-50ANA-A

NC

CLJ-G80-50ANB-A

N+C

CLJ-G80-50ANC-A

PNP 3-wire/4-wire

NO

CLJ-G80-50APA-A

NC

CLJ-G80-50APB-A

N+C

CLJ-G80-50APC-A

Supply voltage

10-30VDC

Current consumption

≤15mA

Output current

≤200mA

Output voltage drop

≤1.5V

Response frequency

≤30Hz

DC 2-wire

NO

CLJ-G80-50ALA-A

NC

CLJ-G80-50ALB-A

Supply voltage

 10-30VDC

Current consumption

≤1mA

Output current

≤50mA

Output voltage drop

≤5V

Response frequency

≤15Hz

AC 2-wire

NO

CLJ-G80-50GKA-A

NC

CLJ-G80-50GKB-A

Supply voltage

 90-250VAC

Current consumption

≤2mA

Output current

≤300mA

Output voltage drop

≤8V

Response frequency

≤10Hz

AC/DC 2-wire

NO

CLJ-G80-50HMA-A

NC

CLJ-G80-50HMB-A

Supply voltage

20-250VAC/DC

Repeatability

<1%

Output indicator

Red LED

Environmental temperature

-25℃-+75℃

Environmental humidity

35-95%RH

Shell material

ABS engineering plastics

Connection method

Internal Terminal Connection

Protection class

IP67
