CLJ-R Ring Proximity Sensor CLJ-R10-T Ring Proximity Senso...

● Inductive proximity sensors detect metal.

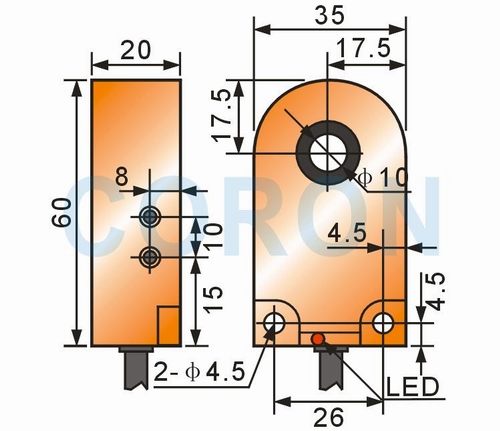

●Ringaperture φ10mm, plastic casing, 2 meterconnection.

●Non-buried type, minimum detectable metal bodyφ0.5mm.

● NPN and PNP dual outputs.

●Adoption of a dedicated IC torealize excellent anti-interference performance.

● Red LED indicator shows the working status of thesensor.

● High detection accuracy and fast response time.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Detectionof tiny metal objects, springs, screws, nuts, washers, iron beads, etc., aswell as fracture detection of continuous metal wires.

Online Consultation

Form	R10
Installation form	Unburied
Detection distance	φ10mm hole diameter
Minimum detector	φ0.5mm
Model number	CLJ-R10-10ASC-T
Output method	NPN+PNP transistor output
Action pattern	Normally Open + Normally Closed
Supply voltage	10-30VDC
Current consumption	≤15mA
Output current	≤200mA
Output voltage drop	≤1.5V
Response frequency	≤2000Hz
Repeatability	<1%
Output indicator	Red LED
Environmental temperature	-25℃-+75℃
Environmental humidity	35-95%RH
Shell material	PBT
Connection method	2m cable
Protection class	IP67
