CLJ-A Threaded Cylindrical Proximity Sensor CLJ-A8M Threaded Cylindrical P...

●Inductive proximity sensorsdetect metal.

●M5 threaded cylindrical,nickel-copper alloy housing.

●Flush mounting method. 2 metrelead.

●Detection distance 1.5mm.

●NPN, PNP transistor output.

●Adoption of dedicated IC to achieve excellent anti-interferenceperformance.

●A red LED indicator shows theoperating status of the sensor.

●High detection accuracy andfast response time.

●With polarity protection,short circuit protection.

●With long life and highreliability.

●Widely used in all kinds ofmachinery, automation equipment positioning, limit, detection, etc..

Online Consultation

Model parameter

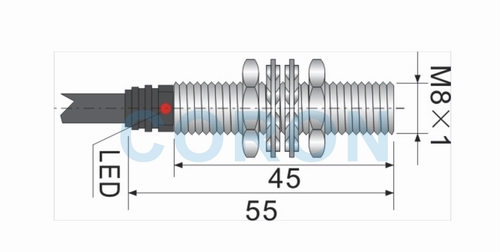

Outline size
Wiring diagram

Type		M8×1
Mounting		Flush-mounted
Detection distance		1.5mm
Setting distance		0-1.2mm
NPN 3-wire	NO	CLJ-A8M-1.5ANA
	NC	CLJ-A8M-1.5ANB
	N+C	------
PNP 3-wire	NO	CLJ-A8M-1.5APA
	NC	CLJ-A8M-1.5APB
	N+C	------
Supply voltage		10-30VDC
Current consumption		≤15mA
Output current		≤200mA
Output voltage drop		≤1.5V
Response frequency		≤1000Hz
DC2-wire	NO	CLJ-A8M-1.5ALA
	NC	CLJ-A8M-1.5ALB
Supply voltage		10-30VDC
Current consumption		≤1mA
Output current		≤50mA
Output voltage drop		≤5V
Response frequency		≤500Hz
Repeat accuracy		＜1%
Output indicator		Red LED
Ambient temperature		-25℃-+75℃
Ambient humidity		35-95%RH
Shell material		Nickel-copper alloy
Connection		2mcable
Protection degree		IP67
