CLJ-A Threaded Cylindrical Proximity Sensor CLJ-A8-G Threaded Cylindrical ...

●Inductive proximity sensor to detect metal.

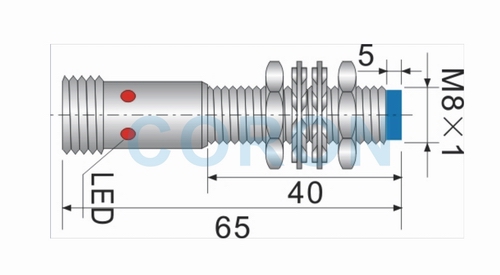

●M8 threadcylindrical, nickel-copper alloy housing with M12 connector.

 ●Non-buried type,detection distance 2mm.

●NPN, PNP, DC two-wire output.

●Use special IC toachieve excellent anti-interference performance.

●Red LED indicator can showthe working status of the sensor

●High detection accuracy and fast responsespeed.

●With polarity protection and short circuit protection.

●With long lifeand high reliability.

●Widely used in all kinds of machinery, automationequipment positioning, limit, detection, etc.

Online Consultation

Type

M8×1-G

Mounting

Unburied

Detection distance

2mm

Setting distance

0-1.6mm

NPN3-wire

NO

CLJ-A8-2ANA-G

NC

CLJ-A8-2ANB-G

N+C

------

PNP3-wire

NO

CLJ-A8-2APA-G

NC

CLJ-A8-2APB-G

N+C

------

Supply voltage

10-30VDC

Current consumption

≤15mA

Output current

≤200mA

Output voltage drop

≤1.5V

Response frequency

≤500Hz

DC2-wire

NO

CLJ-A8-2ALA-G

NC

CLJ-A8-2ALB-G

Supply voltage

10-30VDC

Current consumption

≤1mA

Output current

≤50mA

Output voltage drop

≤5

Response frequency

≤200Hz

Repeat accuracy

＜1%

Output indicator

Red LED

Ambient temperature

-25℃-+75℃

Ambient humidity

35-95%RH

Shell material

Nickel-copper alloy

Connection method

M12 connector

Protection degree

IP67
