CLJ-A Threaded Cylindrical Proximity Sensor CLJ-A8-G3 Threaded Cylindrical...

●Inductive proximity sensor to detect metal.

●M8 thread cylindrical,nickel-copper alloy housing, lead 30cm with M12 connector.

●Non-buried type,detection distance 2mm.

●NPN, PNP, DC two-wire output.

●Use special IC toachieve excellent anti-interference performance.

●Red LED indicator can showthe working status of the sensor.

●High detection accuracy and fast responsespeed.

●With polarity protection and short circuit protection.

●With long lifeand high reliability.

●Widely used in all kinds of machinery, automationequipment positioning, limit, detection, etc.

Online Consultation

Model parameter

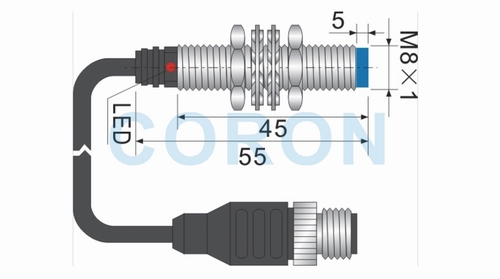

Outline size
Wiring diagram

Type		M8×1-G3
Mounting		Unburied
Detection distance		2mm
Setting distance		0-1.6mm
NPN 3-wire	NO	CLJ-A8-2ANA-G3
	NC	CLJ-A8-2ANB-G3
	N+C	------
PNP 3-wire	NO	CLJ-A8-2APA-G3
	NC	CLJ-A8-2APB-G3
	N+C	------
Supply voltage		10-30VDC
Current consumption		≤15mA
Output current		≤200mA
Output voltage drop		≤1.5V
Response frequency		≤500Hz
DC 2-wire	NO	CLJ-A8-2ALA-G3
	NC	CLJ-A8-2ALB-G3
Supply voltage		10-30VDC
Current consumption		≤1mA
Output current		≤50mA
Output voltage drop		≤5
Response frequency		≤200Hz
Repeat accuracy		＜1%
Output indicator		Red LED
Ambient temperature		-25℃-+75℃
Ambient humidity		35-95%RH
Shell material		Nickel-copper alloy
Connection method		Leads 30cm with M12 connector
Protection degree		IP67
