CLJ-A Threaded Cylindrical Proximity Sensor CLJ-A12M Threaded Cylindrical ...

●Inductive proximity sensors to detect metal.

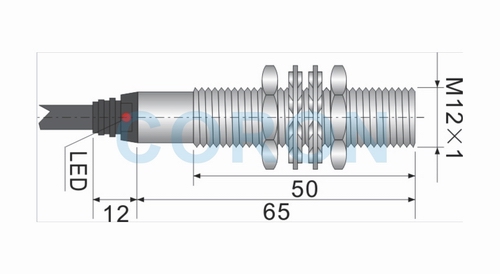

●Cylindrical M12 thread, extra short type, nickel-copper alloy housing, lead30cm with M12 connector.

●Buried type. Detection distance 2mm.

●NPN, PNP, DC2-wire, AC 2-wire, AC/DC 2-wire output.

●Using special IC to achieve excellentanti-interference performance.

●Red LED indicator can show the working statusof the sensor.

●High detection accuracy and fast responsespeed.

●With polarity protection and short circuit protection.

●With long lifeand high reliability.

●Widely used in all kinds of machinery, automationequipment positioning, limit, detection, etc.

Online Consultation

Type

M12×1

Mounting

Flush-mounted

Detection distance

2mm

Setting distance

0-1.6mm

NPN 3-wire/4-wire

NO

CLJ-A12M-2ANA

NC

CLJ-A12M-2ANB

N+C

CLJ-A12M-2ANC

PNP

3-wire/4-wire

NO

CLJ-A12M-2APA

NC

CLJ-A12M-2APB

N+C

CLJ-A12M-2APC

Supply voltage

10-30VDC

Current consumption

≤15mA

Output current

≤200mA

Output voltage drop

≤1.5V

Response frequency

≤800Hz

DC2-wire

NO

CLJ-A12M-2ALA

NC

CLJ-A12M-2ALB

Supply voltage

10-30VDC

Current consumption

≤1mA

Output current

≤50mA

Output voltage drop

≤5V

Response frequency

≤400Hz

AC2-wire

NO

CLJ-A12M-2GKA

NC

CLJ-A12M-2GKB

Supply voltage

 90-250VAC

Current consumption

≤2mA

Output current

≤300mA

Output voltage drop

≤8V

Response frequency

≤25Hz

AC/DC2-wire

NO

CLJ-A12M-2HMA

NC

CLJ-A12M-2HMB

Supply voltage

20-250VAC/DC

Repeat accuracy

＜1%

Output indicator

Red LED

Ambient temperature

-25℃-+75℃

Ambient humidity

35-95%RH

Shell material

Nickel-copper alloy

Connection method

2m cable

Protection degree

IP67
