CLJ-A Threaded Cylindrical Proximity Sensor CLJ-A12A Threaded Cylindrical ...

●Inductive proximity sensors detect metal.

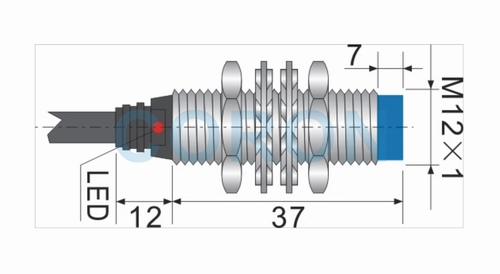

●M12 thread cylindrical, ultra-short type, nickel-copperalloy housing, 2m lead.

●Non-buried type, detection distance 4mm.

●NPN, PNP, DC two-wire output.

●Use special IC to achieve excellent anti-interferenceperformance.

●Red LED indicator can show the working status of thesensor.

●High detectionaccuracy and fast response speed.

●With polarity protection and short circuit protection.

●With long life and high reliability.

●Widely used in all kinds of machinery, automationequipment positioning, limit, detection, etc.

Online Consultation

Type

M12×1

Mounting

Unburied

Detection distance

4mm

Setting distance

0-3.2mm

NPN

3-wire

NO

CLJ-A12A-4ANA

NC

CLJ-A12A-4ANB

N+C

PNP

3-wire

NO

CLJ-A12A-4APA

NC

CLJ-A12A-4APB

N+C

Supply voltage

10-30VDC

Current consumption

≤15mA

Output current

≤200mA

Output voltage drop

≤1.5V

Response frequency

≤400Hz

DC

2-wire

NO

CLJ-A12A-4ALA

NC

CLJ-A12A-4ALB

Supply voltage

10-30VDC

Current consumption

≤1mA

Output current

≤50mA

Output voltage drop

≤5

Response frequency

≤200Hz

Repeat accuracy

＜1%

Output indicator

Red LED

Ambient temperature

-25℃-+75℃

Ambient humidity

35-95%RH

Shell material

Nickel-copper alloy

Connection method

2m cable

Protection degree

IP67

CLJ-A Threaded Cylindrical Proximity Sensor ( 0 )
