CLJ-A Threaded Cylindrical Proximity Sensor CLJ-A12AM Threaded Cylindrical...

●Inductive proximity sensors detect metal.

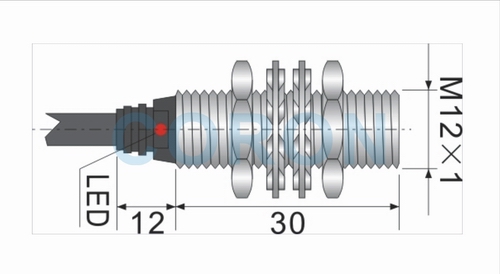

●Cylindrical M12 thread, extra short type, nickel-copperalloy housing, 2 metre lead.

 ●Buried type.Detection distance 2mm.

●NPN, PNP, DC two-wire output.

●Using special IC to achieve excellent anti-interferenceperformance.

●Red LED indicator can show the working status of thesensor.

●High detectionaccuracy and fast response speed.

●With polarity protection and short circuit protection.

●With long life and high reliability.

●Widely used in all kinds of machinery, automationequipment positioning, limit, detection, etc.

Online Consultation

Type

M12×1

Mounting

flush-mounted

Detection distance

2mm

Setting distance

0-1.6mm

NPN

3-wire

NO

CLJ-A12AM-2ANA

NC

CLJ-A12AM-2ANB

N+C

PNP

3-wire

NO

CLJ-A12AM-2APA

NC

CLJ-A12AM-2APB

N+C

Supply voltage

10-30VDC

Current consumption

≤15mA

Output current

≤200mA

Output voltage drop

≤1.5V

Response frequency

≤800Hz

DC

2-wire

NO

CLJ-A12AM-2ALA

NC

CLJ-A12AM-2ALB

Supply voltage

10-30VDC

Current consumption

≤1mA

Output current

≤50mA

Output voltage drop

≤5V

Response frequency

≤400Hz

Repeat accuracy

＜1%

Output indicator

Red LED

Ambient temperature

-25℃-+75℃

Ambient humidity

35-95%RH

Shell material

Nickel-copper alloy

Connection method

2m cable

Protection degree

IP67

CLJ-A Threaded Cylindrical Proximity Sensor ( 0 )
