CLJ-A Threaded Cylindrical Proximity Sensor CLJ-A12-G3 Threaded Cylindrica...

●Inductive proximity sensor to detect metal.

●M12 thread cylindrical, nickel-copper alloy housing,lead 30cm with M12 connector.

●Non-buried type, detection distance 4mm.

●NPN, PNP, DC two-wire output.

●Use special IC to achieve excellent anti-interferenceperformance.

●Red LED indicator can show the working status of thesensor.

●High detection accuracy and fast response speed.

●With polarity protection and short circuit protection.

●With long life and high reliability.

●Widely used in all kinds of machinery, automationequipment positioning, limit, detection, etc.

Online Consultation

Model parameter

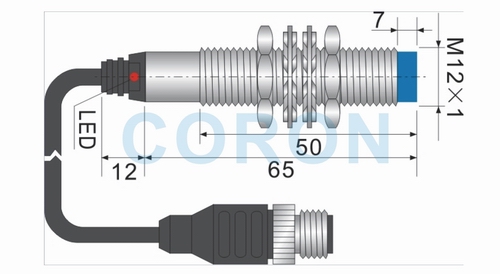

Outline size
Wiring diagram

Type		M12×1-G3
Mounting		Unburied
Detection distance		4mm
Setting distance		0-3.2mm
NPN 3-wire/4-wire	NO	CLJ-A12-4ANA-G3
	NC	CLJ-A12-4ANB-G3
	N+C	CLJ-A12-4ANC-G3
PNP 3-wire/4-wire	NO	CLJ-A12-4APA-G3
	NC	CLJ-A12-4APB-G3
	N+C	CLJ-A12-4APC-G3
Supply voltage		10-30VDC
Current consumption		≤15mA
Output current		≤200mA
Output voltage drop		≤1.5V
Response frequency		≤400Hz
DC2-wire	NO	CLJ-A12-4ALA-G3
	NC	CLJ-A12-4ALB-G3
Supply voltage		10-30VDC
Current consumption		≤1mA
Output current		≤50mA
Output voltage drop		≤5
Response frequency		≤200Hz
Repeat accuracy		＜1%
Output indicator		Red LED
Ambient temperature		-25℃-+75℃
Ambient humidity		35-95%RH
Shell material		Nickel-copper alloy
Connection method		M12 Connector
Protection class		IP67
