CLJ-A Threaded Cylindrical Proximity Sensor CLJ-A18 Threaded Cylindrical P...

●Inductive proximity sensors detect metal.

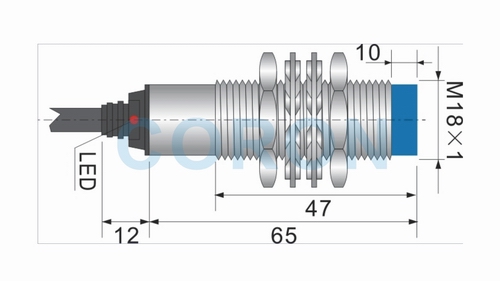

●M18 thread cylindrical, nickel-copper alloy housing, 2mlead.

●Non-buried type, detection distance 8mm.

●NPN, PNP, DC 2-wire, AC 2-wire, AC/DC 2-wire output.

●Using special IC to achieve excellent anti-interferenceperformance.

●Red LED indicator can show the working status of thesensor.

●High detectionaccuracy and fast response speed.

●With polarity protection and short circuit protection.

●With long life and high reliability.

●Widely used in all kinds of machinery, automationequipment positioning, limit, detection, etc.

Online Consultation

Type

M18×1

Mounting

Unburied

Detection distance

8mm

Setting distance

0-6.4mm

NPN

3-wire/4-wire

NO

CLJ-A18-8ANA

NC

CLJ-A18-8ANB

N+C

CLJ-A18-8ANC

PNP

3-wire/4-wire

NO

CLJ-A18-8APA

NC

CLJ-A18-8APB

N+C

CLJ-A18-8APC

Supply voltage

10-30VDC

Current consumption

≤15mA

Output current

≤200mA

Output voltage drop

≤1.5V

Response frequency

≤200Hz

DC

2-wire

NO

CLJ-A18-8ALA

NC

CLJ-A18-8ALB

Supply voltage

10-30VDC

Current consumption

≤1mA

Output current

≤50mA

Output voltage drop

≤5

Response frequency

≤100Hz

AC

2-wire

NO

CLJ-A18-8GKA

NC

CLJ-A18-8GKB

Supply voltage

90-250VAC

Current consumption

≤2mA

Output current

≤300mA

Output voltage drop

≤8V

Response frequency

≤25Hz

AC/DC

2-wire

NO

CLJ-A18-8HMA

NC

CLJ-A18-8HMB

Supply voltage

20-250VAC/DC

Repeat accuracy

＜1%

Output indicator

Red LED

Ambient temperature

-25℃-+75℃

Ambient humidity

35-95%RH

Shell material

Nickel-copper alloy

Connection method

2m cable

Protection class

IP67
