CLJ-A Threaded Cylindrical Proximity Sensor CLJ-A18BM Threaded Cylindrical...

●Inductive proximity sensors detect metal.

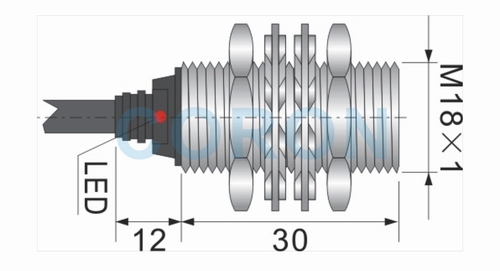

●CylindricalM18 thread, ultra-short, nickel-copper alloy housing, 2 metre lead.

●Buriedtype. Detection distance 5mm.

●NPN, PNP, DC two-wire output.

●Using special ICto achieve excellent anti-interference performance.

●Red LED indicator can showthe working status of the sensor.

●High detection accuracy and fast responsespeed.

●With polarity protection and short circuit protection.

●With long lifeand high reliability.

●Widely used in all kinds of machinery, automationequipment positioning, limit, detection, etc.

Online Consultation

Type

M18×1

Mounting

Flush-mounted

Detection distance

5mm

Setting distance

0-4mm

NPN

3-wire

NO

CLJ-A18BM-5ANA

NC

CLJ-A18BM-5ANB

N+C

PNP

3-wire

NO

CLJ-A18BM-5APA

NC

CLJ-A18BM-5APB

N+C

Supply voltage

10-30VDC

Current consumption

≤15mA

Output current

≤200mA

Output voltage drop

≤1.5V

Response frequency

≤500Hz

DC

2-wire

NO

CLJ-A18BM-5ALA

NC

CLJ-A18BM-5ALB

Supply voltage

10-30VDC

Current consumption

≤1mA

Output current

≤50mA

Output voltage drop

≤5V

Response frequency

≤200Hz

Repeat accuracy

＜1%

Output indicator

Red LED

Ambient temperature

-25℃-+75℃

Ambient humidity

35-95%RH

Shell material

Nickel-copper alloy

Connection method

2m cable

Protection class

IP67
