CLJ-A Threaded Cylindrical Proximity Sensor CLJ-A18M-G3 Threaded Cylindric...

● Inductive proximity sensors detect metal.

● Cylindrical M18 thread, nickel-copperalloy housing, lead30 cm with M12 connector.

●Buried type, detection distance 5mm.

●NPN, PNP, DC two-wire output.

●Adoption of a dedicated IC to realizeexcellent anti-interference performance.

● Red LEDindicator to show the working status of the sensor

● Highdetection accuracy and fast response time.

● Withpolarity protection and short-circuit protection.

● Long lifeand high reliability.

●Widely used in all kinds of machinery, automation equipmentpositioning, limit, detection, etc.

Online Consultation

Model parameter

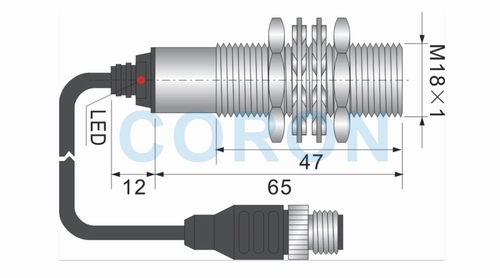

Outline size
Wiring diagram

Form		M18×1-G3
Installation form		flush-mounted
Detection distance		5mm
Setting distance		0-4mm
NPN 3-wire/4-wire	NO	CLJ-A18M-5ANA-G3
	NC	CLJ-A18M-5ANB-G3
	N+C	CLJ-A18M-5ANC-G3
PNP 3-wire/4-wire	NO	CLJ-A18M-5APA-G3
	NC	CLJ-A18M-5APB-G3
	N+C	CLJ-A18M-5APC-G3
Supply voltage		10-30VDC
Current consumption		≤15mA
Output current		≤200mA
Output voltage drop		≤1.5V
Response frequency		≤500Hz
DC 2-wire	NO	CLJ-A18M-5ALA-G3
	NC	CLJ-A18M-5ALB-G3
Supply voltage		10-30VDC
Current consumption		≤1mA
Output current		≤50mA
Output voltage drop		≤5V
Response frequency		≤200Hz
Repeatability		<1%
Output indicator		Red LED
Environmental temperature		-25℃-+75℃
Environmental humidity		35-95%RH
Housing material		Nickel-copper alloy
Connection method		Leads 30cm with M12 connector
Protection class		IP67
