CLJ-A Threaded Cylindrical Proximity Sensor CLJ-A30BM Threaded Cylindrical...

● Inductive proximity sensors detect metal.

● Cylindrical M30 thread, extra short, nickel-copperalloy housing, 2meter leads.

●Buried type, detection distance 10mm.

●NPN, PNP, DC two-wire output.

●Adoption of dedicated IC to realizeexcellent anti-interference performance.

● Red LEDindicator to show the working status of the sensor.

● Highdetection accuracy and fast response time.

● Withpolarity protection and short-circuit protection.

● Long lifeand high reliability.

●Widely used in all kinds of machinery, automation equipmentpositioning, limit, detection and so on.

Online Consultation

Model parameter

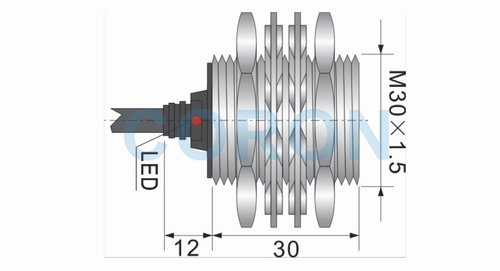

Outline size
Wiring diagram

Form		M30×1
Installation form		Flush-mounted
Detection distance		10mm
Setting distance		0-8mm
NPN 3-wire	NO	CLJ-A30BM-10ANA
	NC	CLJ-A30BM-10ANB
	N+C
PNP 3-wire	NO	CLJ-A30BM-10APA
	NC	CLJ-A30BM-10APB
	N+C
Supply voltage		10-30VDC
Current consumption		≤15mA
Output current		≤200mA
Output voltage drop		≤1.5V
Response frequency		≤200Hz
DC 2-wire	NO	CLJ-A30BM-10ALA
	NC	CLJ-A30BM-10ALB
Supply voltage		10-30VDC
Current consumption		≤1mA
Output current		≤50mA
Output voltage drop		≤5V
Response frequency		≤100Hz
Repeatability		<1%
Output indicator		Red LED
Environmental temperature		-25℃-+75℃
Environmental humidity		35-95%RH
Shell material		Nickel-copper alloy
Connection method		2m cable
Protection class		IP67
