CLJ-A Threaded Cylindrical Proximity Sensor CLJ-A30M-G Threaded Cylindrica...

● Inductive proximity sensors detect metal.

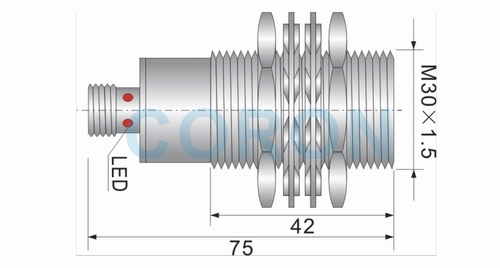

● Cylindrical M30 thread, nickel-copperalloy housing, M12connector.

●Buried type, detection distance 10mm.

●NPN, PNP, DC 2-wire, AC 2-wire, AC/DC 2-wire outputs.

●Adoption of dedicated IC to realizeexcellent anti-interference performance.

● Red LEDindicator to show the working status of the sensor.

● Highdetection accuracy and fast response time.

● Withpolarity protection and short-circuit protection.

● Long lifeand high reliability.

●Widely used in all kinds of machinery, automation equipmentpositioning, limit, detection and so on.

Online Consultation

Form

M30×1-G

Installation form

Flush-mounted

Detection distance

10mm

Setting distance

0-8mm

NPN 3-wire/4-wire

NO

CLJ-A30M-10ANA-G

NC

CLJ-A30M-10ANB-G

N+C

CLJ-A30M-10ANC-G

PNP 3-wire/4-wire

NO

CLJ-A30M-10APA-G

NC

CLJ-A30M-10APB-G

N+C

CLJ-A30M-10APC-G

Supply voltage

10-30VDC

Current consumption

≤15mA

Output current

≤200mA

Output voltage drop

≤1.5V

Response frequency

≤200Hz

DC  2-wire

NO

CLJ-A30M-10ALA-G

NC

CLJ-A30M-10ALB-G

Supply voltage

 10-30VDC

Current consumption

≤1mA

Output current

≤50mA

Output voltage drop

≤5V

Response frequency

≤100Hz

AC  2-wire

NO

CLJ-A30M-10GKA-G

NC

CLJ-A30M-10GKB-G

Supply voltage

 90-250VAC

Current consumption

≤2mA

Output current

≤300mA

Output voltage drop

≤8V

Response frequency

≤25Hz

AC/DC 2-wire

NO

CLJ-A30M-10HMA-G

NC

CLJ-A30M-10HMB-G

Supply voltage

20-250VAC/DC

Repeatability

<1%

Output indicator

Red LED

Environmental temperature

-25℃-+75℃

Environmental humidity

35-95%RH

Housing material

Nickel-copper alloy

Connection method

M12 Connector

Protection class

IP67

CLJ-A Threaded Cylindrical Proximity Sensor ( 0 )
