CLJ-A Threaded Cylindrical Proximity Sensor CLJ-A30-G3 Threaded Cylindrica...

● Inductive proximity sensors detect metal.

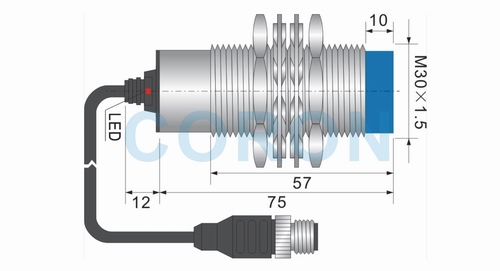

● Cylindrical with M30 thread,nickel-copper alloy housing, lead 30 cm with M12 connector.

● Non-buried,detection distance 15mm.

●NPN, PNP, DC two-wire output.

●Adoption of a dedicated IC to realizeexcellent anti-interference performance.

● Red LED indicatorto show the working status of the sensor.

● Highdetection accuracy and fast response time.

● Withpolarity protection and short-circuit protection.

● Long lifeand high reliability.

●Widely used in all kinds of machinery, automation equipment positioning,limit, detection, etc..

Online Consultation

Form

M30×1-G3

Installation form

Unburied

Detection distance

15mm

Setting distance

0-12mm

NPN 3-wire

NO

CLJ-A30-15ANA-G3

NC

CLJ-A30-15ANB-G3

N+C

PNP 3-wire

NO

CLJ-A30-15APA-G3

NC

CLJ-A30-15APB-G3

N+C

Supply voltage

10-30VDC

Current consumption

≤15mA

Output current

≤200mA

Output voltage drop

≤1.5V

Response frequency

≤200Hz

DC 2-wire

NO

CLJ-A30-15ALA-G3

NC

CLJ-A30-15ALB-G3

Supply voltage

10-30VDC

Current consumption

≤1mA

Output current

≤50mA

Output voltage drop

≤5

Response frequency

≤100Hz

Repeatability

<1%

Output indicator

Red LED

Environmental temperature

-25℃-+75℃

Environmental humidity

35-95%RH

Housing material

Nickel-copper alloy

Connection method

Leads 30cm with M12 connector

Protection class

IP67

CLJ-A Threaded Cylindrical Proximity Sensor ( 0 )
