CLJ-A Threaded Cylindrical Proximity Sensor CLJ-A30M-G3 Threaded Cylindric...

● Inductive proximity sensors detect metal.

● Cylindrical with M30 thread,nickel-copper alloy housing, lead 30 cm with M12 connector.

●Buried type, detection distance 10mm.

●NPN, PNP, DC two-wire output.

●Adoption of dedicated IC to realizeexcellent anti-interference performance.

● Red LEDindicator to show the working status of the sensor.

● Highdetection accuracy and fast response time.

● Withpolarity protection and short-circuit protection.

● Long lifeand high reliability.

●Widely used in all kinds of machinery, automation equipmentpositioning, limit, detection, etc..

Online Consultation

Model parameter

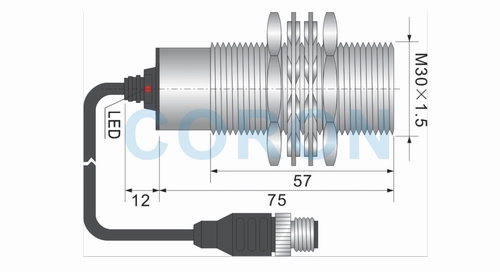

Outline size
Wiring diagram

Form		M30×1-G3
Installation form		Flush-mounted
Detection distance		10mm
Setting distance		0-8mm
NPN 3-wire/4-wire	NO	CLJ-A30M-10ANA-G3
	NC	CLJ-A30M-10ANB-G3
	N+C
PNP 3-wire/4-wire	NO	CLJ-A30M-10APA-G3
	NC	CLJ-A30M-10APB-G3
	N+C
Supply voltage		10-30VDC
Current consumption		≤15mA
Output current		≤200mA
Output voltage drop		≤1.5V
Response frequency		≤200Hz
DC 2-wire	NO	CLJ-A30M-10ALA-G3
	NC	CLJ-A30M-10ALB-G3
Supply voltage		10-30VDC
Current consumption		≤1mA
Output current		≤50mA
Output voltage drop		≤5V
Response frequency		≤100Hz
Repeatability		<1%
Output indicator		Red LED
Environmental temperature		-25℃-+75℃
Environmental humidity		35-95%RH
Housing material		Nickel-copper alloy
Connection method		Leads 30cm with M12 connector
Protection class		IP67

CLJ-A Threaded Cylindrical Proximity Sensor ( 0 )
