CLJ-B Cylindrical Proximity Sensor CLJ-B3 Cylindrical Proximity S...

● Inductive proximity sensors detect metal.

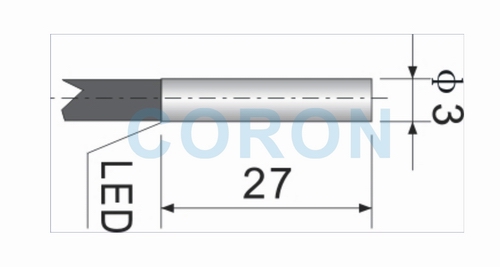

●φ3 cylindrical, nickel-copper alloy case, 2 meter lead.

● Non-buried,detection distance 0.6mm.

●NPN, PNP output.

●Adoption of dedicated IC to realizeexcellent anti-interference performance.

● Red LEDindicator to show the working status of the sensor

● Highdetection accuracy and fast response time.

● With polarityprotection and short-circuit protection.

● Long lifeand high reliability.

●Widely used in all kinds of machinery, automation equipmentpositioning, limit, detection and so on.

Online Consultation

Form

φ3

Installation form

flush-mounted

Detection distance

0.6mm

Setting distance

0-0.48mm

NPN 3-wire

NO

CLJ-B3M-0.6ANA

NC

CLJ-B3M-0.6ANB

N+C

 ------

PNP 3-wire

NO

CLJ-B3M-0.6APA

NC

CLJ-B3M-0.6APB

N+C

 ------

Supply voltage

10-30VDC

Current consumption

≤15mA

Output current

≤200mA

Output voltage drop

≤1.5V

Response frequency

≤2000Hz

Repeatability

<1%

Output indicator

Red LED

Environmental temperature

-25℃-+75℃

Environmental humidity

35-95%RH

Housing material

Nickel-copper alloy

Connection method

2m cable

Protection class

IP67
