CLJ-B Cylindrical Proximity Sensor CLJ-B6.5M Cylindrical Proximit...

● Inductive proximity sensors detect metal.

●φ6.5 cylindrical, nickel-copper alloy case, 2-meter lead.

●Buried type, detection distance 1mm.

●NPN, PNP, DC two-wire output.

●Adoption of a dedicated IC to realizeexcellent anti-interference performance.

● Red LEDindicator shows the working status of the sensor.

● Highdetection accuracy and fast response time.

● Withpolarity protection and short-circuit protection.

● Long lifeand high reliability.

●Widely used in all kinds of machinery, automation equipmentpositioning, limit, detection and so on.

Online Consultation

Model parameter

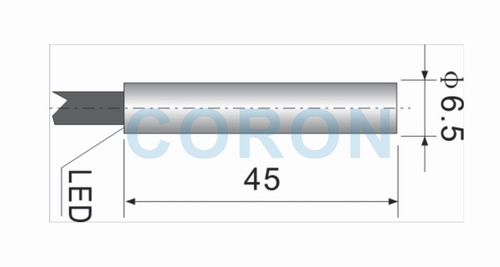

Outline size
Wiring diagram

Form		φ6.5
Installation form		Flush-mounted
Detection distance		1mm
Setting distance		0-0.8mm
NPN 3-wire	NO	CLJ-B6.5M-1ANA
	NC	CLJ-B6.5M-1ANB
	N+C	------
PNP 3-wire	NO	CLJ-B6.5M-1APA
	NC	CLJ-B6.5M-1APB
	N+C	------
Supply voltage		10-30VDC
Current consumption		≤15mA
Output current		≤200mA
Output voltage drop		≤1.5V
Response frequency		≤1000Hz
DC 2-wire	NO	CLJ-B6.5M-1ANA
	NC	CLJ-B6.5M-1ANB
Supply voltage		10-30VDC
Current consumption		≤1mA
Output current		≤50mA
Output voltage drop		≤5V
Response frequency		≤500Hz
Repeatability		<1%
Output indicator		Red LED
Environmental temperature		-25℃-+75℃
Environmental humidity		35-95%RH
Shell material		Nickel-copper alloy
Connection method		2m cable
Protection class		IP67
