CGJ High Temperature Proximity Sensor CGJ-A18M High Temperature Pro...

● Inductive proximity sensors detect metal.

●Hightemperature resistance of 120°C.

● Cylindrical M18 thread, nickel-copperalloy housing, 2 metre leads.

● Buried type, detection distance 5mm.

●NPN, PNP, DC two-wire output.

●Adoption of dedicated IC to achieveexcellent anti-interference performance.

● Red LED indicator to show the working status of thesensor.

● High detection accuracy and fast response time.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Widelyused in metallurgy, glass, ceramics, machinery and other high-temperature environmentfor positioning, limiting, detecting and so on.

Online Consultation

Form

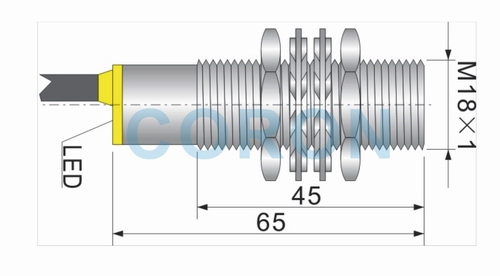

M18×1

Installation form

Flush-mounted

Detection distance

5mm

Setting distance

0-4mm

NPN 3-wire

NO

CGJ-A18M-5ANA

NC

CGJ-A18M-5ANB

N+C

PNP 3-wire

NO

CGJ-A18M-5APA

NC

CGJ-A18M-5APB

N+C

Supply voltage

10-30VDC

Current consumption

≤15mA

Output current

≤200mA

Output voltage drop

≤1.5V

Response frequency

≤400Hz

DC 2-wire

NO

CGJ-A18M-5ALA

NC

CGJ-A18M-5ALB

Supply voltage

10-30VDC

Current consumption

≤1mA

Output current

≤50mA

Output voltage drop

≤5

Response frequency

≤200Hz

Repeatability

<1 percent

Output indicator

Red LED

Environmental temperature

-25°C-+120°C

Environmental humidity

35-95%RH

Shell material

Nickel-copper alloy

Connection method

2m cable

Protection class

IP67
