CGJ High Temperature Proximity Sensor CGJ-A30 High Temperature Prox...

● Inductive proximity sensors detect metal.

●Hightemperature resistance of 120°C.

● Cylindrical M30 thread, nickel-copperalloy housing, 2 metre leads.

● Non-buried, detection distance 15mm.

●NPN, PNP, DC 2-wire, AC 2-wire output.

●Adoption of dedicated IC to achieveexcellent anti-interference performance.

● Red LED indicator to show the working status of thesensor.

● High detection accuracy and fast response time.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Positioning, limiting, counting, detecting, etc. forautomation equipment.

●Widelyused in metallurgy, glass, ceramics, machinery and other high temperatureenvironment.

Online Consultation

Model parameter

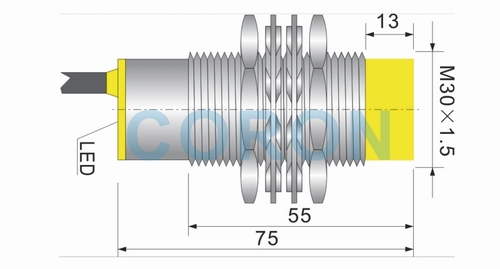

Outline size
Wiring diagram

Form		M30×1.5
Installation form		Unburied
Detection distance		15mm
Setting distance		0-12mm
NPN 3-wire	NO	CGJ-A30-15ANA
	NC	CGJ-A30-15ANB

PNP 3-wire	NO	CGJ-A30-15APA
	NC	CGJ-A30-15APB

Supply voltage		10-30VDC
Current consumption		≤15mA
Output current		≤200mA
Output voltage drop		≤1.5V
Response frequency		≤400Hz
DC 2-wire	NO	CGJ-A30-15ALA
	NC	CGJ-A30-15ALB
Supply voltage		10-30VDC
Current consumption		≤1mA
Output current		≤50mA
Output voltage drop		≤5
Response frequency		≤200Hz
AC 2-wire	NO	CGJ-A30-15GKA
	NC	CGJ-A30-15GKB
Supply voltage		90-250VAC
Current consumption		≤2mA
Output current		≤300mA
Output voltage drop		≤8V
Response frequency		≤25Hz
Repeatability		<1 percent
Output indicator		Red LED
Environmental temperature		-25°C-+120°C
Environmental humidity		35-95%RH
Shell material		Nickel-copper alloy
Connection method		2m cable
Protection class		IP67
