CGJ High Temperature Proximity Sensor CGJ-A30M High Temperature Pro...

● Inductive proximity sensors detect metal.

●Hightemperature resistance of 120°C.

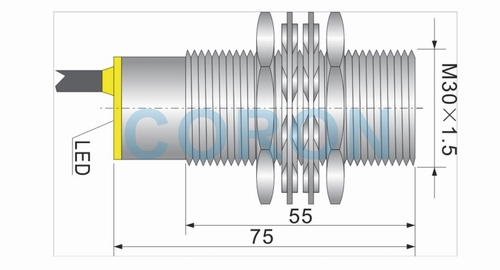

● Cylindrical M30 thread, nickel-copperalloy housing, 2 metre leads.

● Buried type, detection distance 10mm.

●NPN, PNP, DC 2-wire, AC 2-wire output.

●Adoption of dedicated ICs toachieve excellent anti-interference performance.

● Red LED indicator to show the working status of thesensor.

● High detection accuracy and fast response time.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Widelyused in metallurgy, glass, ceramics, machinery and other high-temperatureenvironment for positioning, limiting, detecting and so on.

Online Consultation

Form

M30×1.5

Installation form

Flush-mounted

Detection distance

10mm

Setting distance

0-8mm

NPN 3-wire

NO

CGJ-A30M-10ANA

NC

CGJ-A30M-10ANB

N+C

PNP 3-wire

NO

CGJ-A30M-10APA

NC

CGJ-A30M-10APB

N+C

Supply voltage

10-30VDC

Current consumption

≤15mA

Output current

≤200mA

Output voltage drop

≤1.5V

Response frequency

≤800Hz

DC 2-wire

NO

CGJ-A30M-10ALA

NC

CGJ-A30M-10ALB

Supply voltage

 10-30VDC

Current consumption

≤1mA

Output current

≤50mA

Output voltage drop

≤5V

Response frequency

≤400Hz

AC 2-wire

NO

CGJ-A30M-10GKA

NC

CGJ-A30M-10GKB

Supply voltage

 90-250VAC

Current consumption

≤2mA

Output current

≤300mA

Output voltage drop

≤8V

Response frequency

≤25Hz

Repeatability

<1 percent

Output indicator

Red LED

Environmental temperature

-25°C-+120°C

Environmental humidity

35-95%RH

Shell material

Nickel-copper alloy

Connection method

2m cable

Protection class

IP67
