CGJ High Temperature Proximity Sensor CGJ-E100 High Temperature Pro...

● Inductive proximity sensors detect metal.

●Hightemperature resistance of 120°C.

●Flatmounting shape φ100mm, FRP housing, 2m lead.

● Non-buried, detection distance 60mm.

●NPN, PNP, DC 2-wire, AC 2-wire output.

●Adoption of dedicated IC to achieveexcellent anti-interference performance.

● Red LED indicator shows the working status of thesensor.

● High detection accuracy and fast response time.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Positioning, limiting, counting, detecting, etc. forautomation equipment.

●Widelyused in metallurgy, glass, ceramics, machinery and other high temperatureenvironment.

Online Consultation

Model parameter

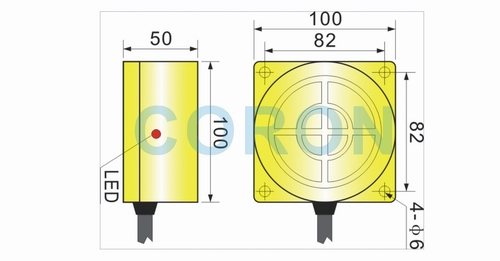

Outline size
Wiring diagram

Form		E100
Installation form		Unburied
Detection distance		60mm
Setting distance		0-48mm
NPN 3-wire	NO	CGJ-E100-60ANA
	NC	CGJ-E100-60ANB
	N+C
PNP 3-wire	NO	CGJ-E100-60APA
	NC	CGJ-E100-60APB
	N+C
Supply voltage		10-30VDC
Current consumption		≤15mA
Output current		≤200mA
Output voltage drop		≤1.5V
Response frequency		≤20Hz
DC 2-wire	NO	CGJ-E100-60ALA
	NC	CGJ-E100-60ALB
Supply voltage		10-30VDC
Current consumption		≤1mA
Output current		≤50mA
Output voltage drop		≤5V
Response frequency		≤150Hz
AC 2-wire	NO	CGJ-E100-60GKA
	NC	CGJ-E100-60GKB
Supply voltage		90-250VAC
Current consumption		≤2mA
Output current		≤300mA
Output voltage drop		≤8V
Response frequency		≤25Hz
Repeatability		<1 percent
Output indicator		Red LED
Environmental temperature		-25°C-+120°C
Environmental humidity		35-95%RH
Shell material		Glass-reinforced plastic
Connection method		2m cable
Protection class		IP67
