CGJ High Temperature Proximity Sensor CG2J-A18M High Temperature Pr...

● Inductive proximity sensors detect metal.

● Resistant to low temperatures of -45°C.

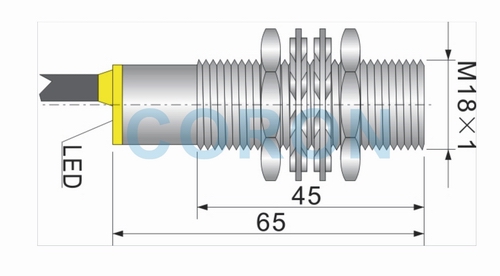

● Cylindrical M18 thread, nickel-copper alloy housing, 2metre leads.

● Buried type, detection distance 5mm.

●NPN, PNP output.

●Adoption of dedicated IC to achieveexcellent anti-interference performance.

● Red LED indicator shows the working status of thesensor.

● High detection accuracy and fast response time.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Positioning, limiting, counting, detecting, etc. forautomation equipment.

●Widelyused in metallurgy, glass, ceramics, machinery and other high temperatureenvironment.


Online Consultation

Form

M18×1

Installation form

Flush-mounted

Detection distance

5mm

Setting distance

0-4mm

NPN 3-wire

NO

CG2J-A18M-5ANA

NC

CG2J-A18M-5ANB

N+C

PNP 3-wire

NO

CG2J-A18M-5APA

NC

CG2J-A18M-5APB

N+C

Supply voltage

10-30VDC

Current consumption

≤15mA

Output current

≤200mA

Output voltage drop

≤1.5V

Response frequency

≤800Hz

Repeatability

<1 percent

Output indicator

Red LED

Environmental temperature

-45°C-+75°C

Environmental humidity

35-95%RH

Shell material

Nickel-copper alloy

Connection method

2m cable

Protection class

IP67

CGJ High Temperature Proximity Sensor ( 0 )
