CGJ High Temperature Proximity Sensor CG2J-A30 High Temperature Pro...

● Inductive proximity sensors detect metal.

● Resistant to low temperatures of -45°C.

● Cylindrical M30 thread, nickel-copper alloy housing, 2metre leads.

● Non-buried, detection distance 15mm.

●NPN, PNP, DC 2-wire, AC 2-wire output.

●Adoption of dedicated IC to achieveexcellent anti-interference performance.

● Red LED indicator shows the working status of thesensor.

● High detection accuracy and fast response time.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Positioning, limiting, counting, detecting, etc. forautomation equipment.

●Widelyused in metallurgy, glass, ceramics, machinery and other high temperatureenvironment.

Online Consultation

Form

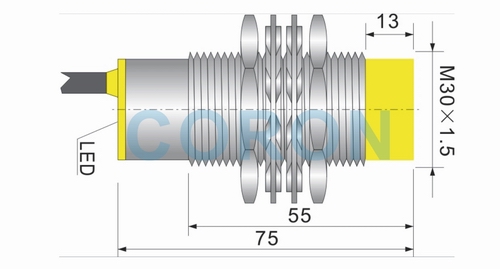

M30×1.5

Installation form

Unburied

Detection distance

15mm

Setting distance

0-6.4mm

NPN 3-wire

NO

CG2J-A30-8ANA

NC

CG2J-A30-8ANB

N+C

PNP 3-wire

NO

CG2J-A30-8APA

NC

CG2J-A30-8APB

N+C

Supply voltage

10-30VDC

Current consumption

≤15mA

Output current

≤200mA

Output voltage drop

≤1.5V

Response frequency

≤400Hz

DC 2-wire

NO

CG2J-A30-15ALA

NC

CG2J-A30-15ALB

Supply voltage

10-30VDC

Current consumption

≤1mA

Output current

≤50mA

Output voltage drop

≤5

Response frequency

≤200Hz

AC 2-wire

NO

CG2J-A30-15GKA

NC

CG2J-A30-15GKB

Supply voltage

90-250VAC

Current consumption

≤2mA

Output current

≤300mA

Output voltage drop

≤8V

Response frequency

≤25Hz

Repeatability

<1 percent

Output indicator

Red LED

Environmental temperature

-45°C-+75°C

Environmental humidity

35-95%RH

Shell material

Nickel-copper alloy

Connection method

2m cable

Protection class

IP67
