CGJ High Temperature Proximity Sensor CG2J-E80 High Temperature Prox...

● Inductive proximity sensors detect metal.

● Resistant to low temperatures of -45°C.

●Flatmounting shape Φ80mm, FRPhousing, 2m lead.

● Non-buried, detection distance 50mm.

●NPN, PNP, DC 2-wire, AC 2-wire output.

●Adoption of dedicated IC to achieveexcellent anti-interference performance.

● Red LED indicator shows the working status of thesensor.

● High detection accuracy and fast response time.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Positioning, limiting, counting, detecting, etc. forautomation equipment.

●Widely used in metallurgy, glass, ceramics, machinery and other hightemperature environment Online Consultation

Model parameter

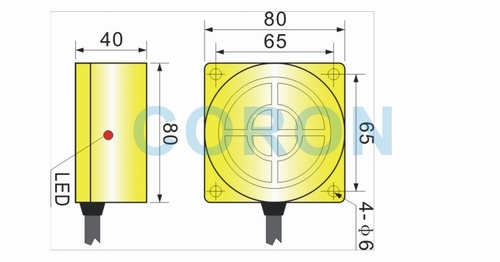

Outline size
Wiring diagram

Form		E80
Installation form		Flush-mounted
Detection distance		50mm
Setting distance		0-40mm
NPN 3-wire	NO	CG2J-E80-50ANA
	NC	CG2J-E80-50ANB
	N+C
PNP 3-wire	NO	CG2J-E80-50APA
	NC	CG2J-E80-50APB
	N+C
Supply voltage		10-30VDC
Current consumption		≤15mA
Output current		≤200mA
Output voltage drop		≤1.5V
Response frequency		≤40Hz
DC 2-wire	NO	CG2J-E80-50ALA
	NC	CG2J-E80-50ALB
Supply voltage		10-30VDC
Current consumption		≤1mA
Output current		≤50mA
Output voltage drop		≤5V
Response frequency		≤20Hz
AC 2-wire	NO	CG2J-E80-50GKA
	NC	CG2J-E80-50GKB
Supply voltage		90-250VAC
Current consumption		≤2mA
Output current		≤300mA
Output voltage drop		≤8V
Response frequency		≤5Hz
Repeatability		<1 percent
Output indicator		Red LED
Environmental temperature		-45°C-+75°C
Environmental humidity		35-95%RH
Shell material		Glass-reinforced plastic
Connection method		2m cable
Protection class		IP67
