CNJ Explosion-proof Proximity Sensor CNJ-A8M Explosion-proof Proxi...

● Inductive proximity sensors detect metal.

● Passed ExiaIIBT6 national explosion-proof certification.

● Cylindrical M8 thread, nickel-copper alloy housing, 2metre leads.

● Buried type, detection distance 1.5mm.

● DC 2-wire output.

● Adoption of dedicated IC toachieve excellent anti-interference performance.

● High detection accuracy and fast response time.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

● Positioning, limiting, counting, detecting, etc. forautomation equipment.

●Widely used in petroleum, chemical, gas, coal mine andother types of flammable and explosive hazardous environments.

Online Consultation

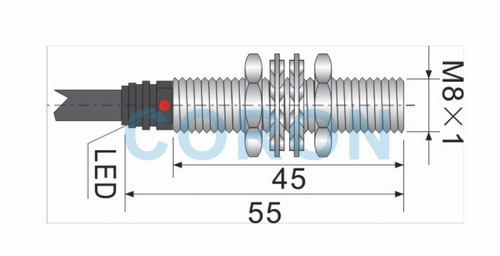

Form		M8×1
Installation form		Flush-mounted
Detection distance		1.5mm
Setting distance		0-1.2mm
DC 2-wire	NO	------
	NC	CNJ-A8M-1.5ALB
Supply voltage		7.7-9VDC
Output current (attenuation)		≥2.2mA
Output current (unattenuated)		≤1mA
Load impedance		≥1KΩ
Response frequency		≤1000Hz
Repeatability		<1 percent
Output indicator		------
Environmental temperature		-25°C-+75°C
Environmental humidity		35-95%RH
Shell material		Nickel-copper alloy
Connection method		2m cable
Protection class		IP67
