CNJ Explosion-proof Proximity Sensor CNJ-A8-G Explosion-proof Prox...

● Inductive proximity sensors detect metal.

● Passed ExiaIIBT6 national explosion-proofcertification.

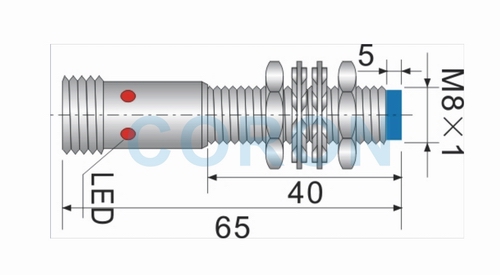

● Cylindrical M8 thread, nickel-copperalloy housing, M12 connector.

● Non-buried,detection distance 2mm.

● DC 2-wireoutput.

● Adoption of dedicated IC to achieveexcellent anti-interference performance.

● Highdetection accuracy and fast response time.

● Withpolarity protection and short-circuit protection.

● Long lifeand high reliability.

● Positioning, limiting, counting, detecting,etc. for automation equipment.

●Widely used in petroleum, chemical, gas,coal mine and other types of flammable and explosive hazardous environments.

Online Consultation

Form		M8×1
Installation form		Unburied
Detection distance		2mm
Setting distance		0-1.6mm
DC 2-wire	NO	------
	NC	CNJ-A8-2ALB-G
Supply voltage		7.7-9VDC
Output current (attenuation)		≥2.2mA
Output current (unattenuated)		≤1mA
Load impedance		≥1KΩ
Response frequency		≤500Hz
Repeatability		<1 percent
Output indicator		------
Environmental temperature		-25℃~+75℃
Environmental humidity		35-95%RH
Shell material		Nickel-copper alloy
Connection method		M12 Connector
Protection class		IP67
