form

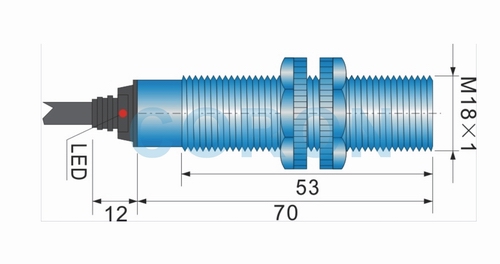

M18×1

Installation form

flush-mounted

Detection distance

5mm

Setting distance

0-4mm

NPN 3-wire/4-wire

NO

CPJ-A18M-5ANA

NC

CPJ-A18M-5ANB

N+C

CPJ-A18M-5ANC

PNP 3-wire/4-wire

NO

CPJ-A18M-5APA

NC

CPJ-A18M-5APB

N+C

CPJ-A18M-5APC

Supply Voltage

10-30VDC

Current consumption

≤15mA

Output Current

≤200mA

Output Voltage Drop

≤1.5V

response frequency

≤500Hz

DC2-wire

NO

CPJ-A18M-5ALA

NC

CPJ-A18M-5ALB

Supply Voltage

 10-30VDC

Current consumption

≤1mA

Output Current

≤50mA

Output Voltage Drop

≤5V

response frequency

≤200Hz

AC2-wire

NO

CPJ-A18M-5GKA

NC

CPJ-A18M-5GKB

Supply Voltage

 90-250VAC

Current consumption

≤2mA

Output Current

≤300mA

Output Voltage Drop

≤8V

response frequency

≤25Hz

AC/DC 2-wire

NO

CPJ-A18M-5HMA

NC

CPJ-A18M-5HMB

Supply Voltage

20-250VAC/DC

Repeatability

<1 percent

Output indicator

red LED

environmental temperature

-25°C-+75°C

Environmental humidity

35-95%RH

Shell material

ABS engineering plastics

connection method

2m cable

protection class

IP67
