CPJ Plastic Proximity Sensor CPJ-A30 Plastic Proximity Sens...

● Inductive proximity sensors detect metal.

● Cylindrical M30 thread, all plastic housing, 2 metre leads.

● Non-buried, detection distance 15mm.

●NPN, PNP, DC 2-wire, AC 2-wire, AC/DC 2-wire outputs.

●Adoption of dedicated IC to achieveexcellent anti-interference performance.

● Red LED indicator to show the working status of thesensor

● High detection accuracy and fast response time.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Widely used in all kinds of machinery, automationequipment positioning, limit, detection and so on.

Online Consultation

form

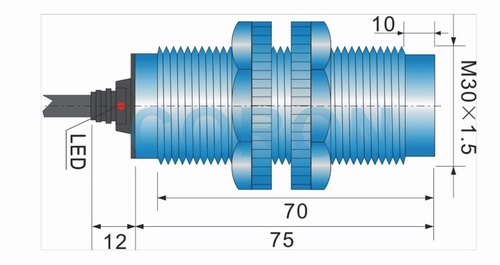

M30×1.5

Installation form

Unburied

Detection distance

15mm

Setting distance

0-12mm

NPN 3-wire/4-wire

NO

CPJ-A30-15ANA

NC

CPJ-A30-15ANB

N+C

CPJ-A30-15ANC

PNP 3-wire/4-wire

NO

CPJ-A30-15APA

NC

CPJ-A30-15APB

N+C

CPJ-A30-15APC

Supply Voltage

10-30VDC

Current consumption

≤15mA

Output Current

≤200mA

Output Voltage Drop

≤1.5V

response frequency

≤200Hz

DC 2-wire

NO

CPJ-A30-15ALA

NC

CPJ-A30-15ALB

Supply Voltage

10-30VDC

Current consumption

≤1mA

Output Current

≤50mA

Output Voltage Drop

≤5

response frequency

≤100Hz

AC 2-wire

NO

CPJ-A30-15GKA

NC

CPJ-A30-15GKB

Supply Voltage

90-250VAC

Current consumption

≤2mA

Output Current

≤300mA

Output Voltage Drop

≤8V

response frequency

≤25Hz

AC/DC 2-wire

NO

CPJ-A30-15HMA

NC

CPJ-A30-15HMB

Supply Voltage

20-250VAC/DC

Repeatability

<1 percent

Output indicator

red LED

environmental temperature

-25°C-+75°C

Environmental humidity

35-95%RH

Shell material

ABS engineering plastics

connection method

2m cable

protection class

IP67
