CQJ All-metal Proximity Sensor CQJ-A8 All-metal Proximity Sen...

● Inductive proximity sensors detect metal.

● All stainless steel design, robust structure, thedetection head is resistant to mechanical impact and corrosion.

● Cylindrical M8 thread, 2 metre lead.

● Non-buried, detection distance 2mm.

●NPN, PNP, DC two-wire output.

●Adoption of dedicated ICs toachieve excellent anti-interference performance.

● Red LED indicator to show the working status of thesensor

● High detection accuracy and fast response time.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Positioning, limiting, counting, detecting, etc. forautomation equipment.

● Widely used in automotive industry, robot welding,food, chemical industry, steel and other fields.

Online Consultation

form

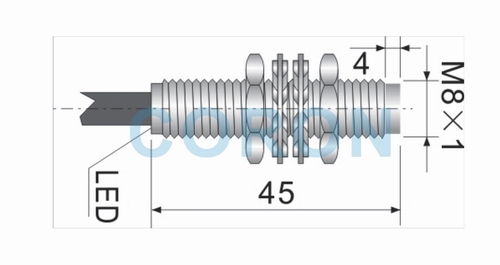

M8×1

Installation form

Unburied

Detection distance

2mm

Setting distance

0-1.6mm

NPN 3-wire

NO

CQJ-A8-2ANA

NC

CQJ-A8-2ANB

N+C

------

PNP 3-wire

NO

CQJ-A8-2APA

NC

CQJ-A8-2APB

N+C

------

Supply Voltage

10-30VDC

Current consumption

≤15mA

Output Current

≤200mA

Output Voltage Drop

≤1.5V

response frequency

≤2000Hz

DC 2-wire

NO

CQJ-A8-2ALA

NC

CQJ-A8-2ALB

Supply Voltage

10-30VDC

Current consumption

≤1mA

Output Current

≤50mA

Output Voltage Drop

≤5

response frequency

≤1000Hz

Repeatability

<1 percent

Output indicator

red LED

environmental temperature

-25°C-+75°C

Environmental humidity

35-95%RH

Shell material

All stainless steel

connection method

2m cable

protection class

IP67
