CSJ Waterproof Proximity Sensor CSJ-A8M Waterproof Proximity ...

● Inductive proximity sensors detect metal.

● Fully sealed metal casing with protection class IP68.

● M8 threaded cylindrical, 2 metre leads.

● Buried type, detection distance 1.5mm.

●NPN, PNP, DC two-wire output.

●Adoption of dedicated IC to achieveexcellent anti-interference performance.

● Red LED indicator shows the working status of thesensor.

● High detection accuracy and fast response time.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Positioning, limiting, counting, detecting, etc. forautomation equipment.

● Widely used in harsh environments such as water mist,water vapour and water.

Online Consultation

Model parameter

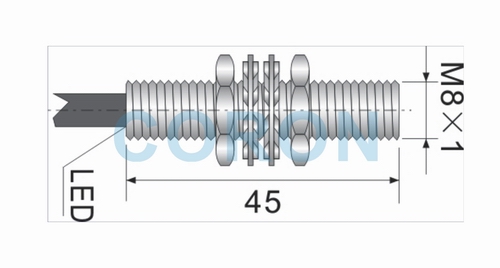

Outline size
Wiring diagram

form		M8×1
Installation form		flush-mounted
Detection distance		1.5mm
Setting distance		0-0.8mm
NPN 3-wire	NO	CSJ-A8M-1.5ANA
	NC	CSJ-A8M-1.5ANB
	N+C	------
PNP 3-wire	NO	CSJ-A8M-1.5APA
	NC	CSJ-A8M-1.5APB
	N+C	------
Supply Voltage		10-30VDC
Current consumption		≤15mA
Output Current		≤200mA
Output Voltage Drop		≤1.5V
response frequency		≤1000Hz
DC2-wire	NO	CSJ-A8M-1.5ALA
	NC	CSJ-A8M-1.5ALB
Supply Voltage		10-30VDC
Current consumption		≤1mA
Output Current		≤50mA
Output Voltage Drop		≤5V
response frequency		≤500Hz
Repeatability		<1 percent
Output indicator		red LED
environmental temperature		-25°C-+75°C
Environmental humidity		35-95%RH
Shell material		Nickel-copper alloy
connection method		2m cable
protection class		IP68
