CSJ Waterproof Proximity Sensor CSJ-A12 Waterproof Proximity ...

● Inductive proximity sensors detect metal.

● Fully sealed metal casing with protection class IP68.

● Cylindrical M12 thread, 2 metre lead.

● Non-buried, detection distance 4mm.

●NPN, PNP, DC 2-wire, AC 2-wire, AC/DC 2-wire outputs.

●Adoption of dedicated IC to achieve excellentanti-interference performance.

● Red LED indicator shows the working status of thesensor.

● High detection accuracy and fast response time.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Positioning, limiting, counting, detecting, etc. forautomation equipment.

● Widely used in harsh environments such as water mist,water vapour and water.

Online Consultation

Model parameter

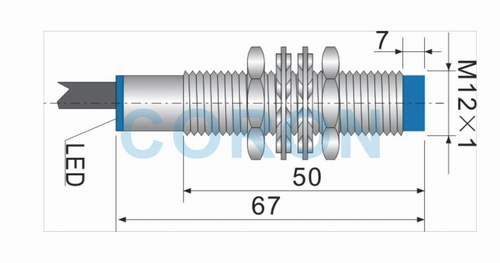

Outline size
Wiring diagram

form		M12×1
Installation form		Unburied
Detection distance		4mm
Setting distance		0-3.2mm
NPN 3-wire/4-wire	NO	CSJ-A12-4ANA
	NC	CSJ-A12-4ANB
	N+C	CSJ-A12-4ANC
PNP 3-wire/4-wire	NO	CSJ-A12-4APA
	NC	CSJ-A12-4APB
	N+C	CSJ-A12-4APC
Supply Voltage		10-30VDC
Current consumption		≤15mA
Output Current		≤200mA
Output Voltage Drop		≤1.5V
response frequency		≤400Hz
DC 2-wire	NO	CSJ-A12-4ALA
	NC	CSJ-A12-4ALB
Supply Voltage		10-30VDC
Current consumption		≤1mA
Output Current		≤50mA
Output Voltage Drop		≤5
response frequency		≤200Hz
AC 2-wire	NO	CSJ-A12-4GKA
	NC	CSJ-A12-4GKB
Supply Voltage		90-250VAC
Current consumption		≤2mA
Output Current		≤300mA
Output Voltage Drop		≤8V
response frequency		≤25Hz
AC/DC 2-wire	NO	CSJ-A12-4HMA
	NC	CSJ-A12-4HMB
Supply Voltage		20-250VAC/DC
Repeatability		<1 percent
Output indicator		red LED
environmental temperature		-25°C-+75°C
Environmental humidity		35-95%RH
Shell material		Nickel-copper alloy
connection method		2m cable
protection class		IP68
