CSJ Waterproof Proximity Sensor CSJ-A12M Waterproof Proximity...

● Inductive proximity sensors detect metal.

● Fully sealed metal casing with protection class IP68.

● M12 threaded cylindrical, 2 metre leads.

● Buried type, detection distance 2mm.

●NPN, PNP, DC 2-wire, AC 2-wire, AC/DC 2-wire outputs.

●Adoption of dedicated IC toachieve excellent anti-interference performance.

● Red LED indicator shows the working status of thesensor.

● High detection accuracy and fast response time.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Positioning, limiting, counting, detecting, etc. forautomation equipment.

● Widely used in harsh environments such as water mist,water vapour and water.

Online Consultation

form

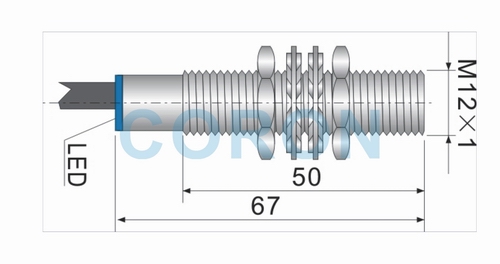

M12×1

Installation form

flush-mounted

Detection distance

2mm

Setting distance

0-1.6mm

NPN 3-wire/4-wire

NO

CSJ-A12M-2ANA

NC

CSJ-A12M-2ANB

N+C

CSJ-A12M-2ANC

PNP 3-wire/4-wire

NO

CSJ-A12M-2APA

NC

CSJ-A12M-2APB

N+C

CSJ-A12M-2APC

Supply Voltage

10-30VDC

Current consumption

≤15mA

Output Current

≤200mA

Output Voltage Drop

≤1.5V

response frequency

≤800Hz

DC 2-wire

NO

CSJ-A12M-2ALA

NC

CSJ-A12M-2ALB

Supply Voltage

 10-30VDC

Current consumption

≤1mA

Output Current

≤50mA

Output Voltage Drop

≤5V

response frequency

≤400Hz

AC 2-wire

NO

CSJ-A12M-2GKA

NC

CSJ-A12M-2GKB

Supply Voltage

 90-250VAC

Current consumption

≤2mA

Output Current

≤300mA

Output Voltage Drop

≤8V

response frequency

≤25Hz

AC/DC 2-wire

NO

CSJ-A12M-2HMA

NC

CSJ-A12M-2HMB

Supply Voltage

20-250VAC/DC

Repeatability

<1 percent

Output indicator

red LED

environmental temperature

-25°C-+75°C

Environmental humidity

35-95%RH

Shell material

Nickel-copper alloy

connection method

2m cable

protection class

IP68
