CSJ Waterproof Proximity Sensor CSJ-E55 Waterproof Proximity ...

● Inductive proximity sensors detect metal.

● Fully sealed plastic enclosure with protection classIP68.

Flat mountingshape φ55mm, 2m lead.

● Non-buried, detection distance 25mm.

●NPN, PNP, DC 2-wire, AC 2-wire output.

●Adoption of dedicated IC to achieve excellent anti-interference performance.

● Red LED indicator shows the working status of thesensor.

● High detection accuracy and fast response time.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Positioning, limiting, counting, detecting, etc. forautomation equipment.

●Widely usedin metallurgy, glass, ceramics, machinery and other high temperatureenvironment.

Online Consultation

Model parameter

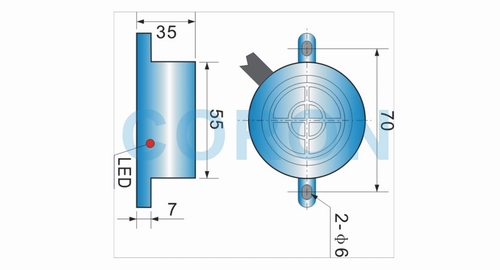

Outline size
Wiring diagram

form		E55
Installation form		Unburied
Detection distance		25mm
Setting distance		0-20mm
NPN 3-wire/4-wire	NO	CSJ-E55-25ANA
	NC	CSJ-E55-25ANB
	N+C	CSJ-E55-25ANC
PNP 3-wire/4-wire	NO	CSJ-E55-25APA
	NC	CSJ-E55-25APB
	N+C	CSJ-E55-25APC
Supply Voltage		10-30VDC
Current consumption		≤15mA
Output Current		≤200mA
Output Voltage Drop		≤1.5V
response frequency		≤80Hz
DC 2-wire	NO	CSJ-E55-25ALA
	NC	CSJ-E55-25ALB
Supply Voltage		10-30VDC
Current consumption		≤1mA
Output Current		≤50mA
Output Voltage Drop		≤5V
response frequency		≤40Hz
AC 2-wire	NO	CSJ-E55-25GKA
	NC	CSJ-E55-25GKB
Supply Voltage		90-250VAC
Current consumption		≤2mA
Output Current		≤300mA
Output Voltage Drop		≤8V
response frequency		≤15Hz
AC/DC 2-wire	NO	CSJ-E55-25HMA
	NC	CSJ-E55-25HMB
Supply Voltage		20-250VAC/DC
Repeatability		<1 percent
Output indicator		red LED
environmental temperature		-25°C-+75°C
Environmental humidity		35-95%RH
Shell material		ABS engineering plastics
connection method		2m cable
protection class		IP68
