CSJ Waterproof Proximity Sensor CSJ-E100 Waterproof Proximity...

● Inductive proximity sensors detect metal.

● Fully sealed plastic enclosure with protection classIP68.

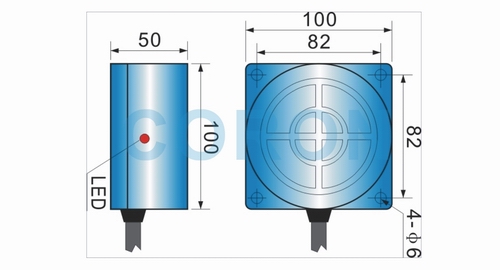

Flat mounting shape φ100mm, 2m lead wire.

● Non-buried, detection distance 60mm.

●NPN, PNP, DC 2-wire, AC 2-wire output.

●Adoption of dedicated IC to achieve excellentanti-interference performance.

● Red LED indicator shows the working status of thesensor.

● High detection accuracy and fast response time.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Positioning, limiting, counting, detecting, etc. forautomation equipment.

●Widely used in metallurgy, glass, ceramics, machineryand other high temperature environment.

Online Consultation

form

E100

Installation form

Unburied

Detection distance

60mm

Setting distance

0-48mm

NPN 3-wire/4-wire

NO

CSJ-E100-60ANA

NC

CSJ-E100-60ANB

N+C

CSJ-E100-60ANC

PNP 3-wire/4-wire

NO

CSJ-E100-60APA

NC

CSJ-E100-60APB

N+C

CSJ-E100-60APC

Supply Voltage

10-30VDC

Current consumption

≤15mA

Output Current

≤200mA

Output Voltage Drop

≤1.5V

response frequency

≤20Hz

DC 2-wire

NO

CSJ-E100-60ALA

NC

CSJ-E100-60ALB

Supply Voltage

 10-30VDC

Current consumption

≤1mA

Output Current

≤50mA

Output Voltage Drop

≤5V

response frequency

≤10Hz

AC 2-wire

NO

CSJ-E100-60GKA

NC

CSJ-E100-60GKB

Supply Voltage

 90-250VAC

Current consumption

≤2mA

Output Current

≤300mA

Output Voltage Drop

≤8V

response frequency

≤5Hz

AC/DC 2-wire

NO

CSJ-E100-60HMA

NC

CSJ-E100-60HMB

Supply Voltage

20-250VAC/DC

Repeatability

<1 percent

Output indicator

red LED

environmental temperature

-25°C-+75°C

Environmental humidity

35-95%RH

Shell material

ABS engineering plastics

connection method

2m cable

protection class

IP67
