CTJ Anti-corrosion Proximity Sensor CTJ-A18BM Anti-corrosion Prox...

● Inductive proximity sensors detect metal.

● Fully sealed PTFE housing with protection class IP68.

● Cylindrical M18 thread, extra short form, 2 metreleads.

● Buried type, detection distance 5mm.

●NPN, PNP, DC two-wire output.

●Adoption of dedicated IC to achieve excellentanti-interference performance.

● Red LED indicator shows the working status of thesensor.

● High detection accuracy and fast response time.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Positioning, limiting, counting, detecting, etc. forautomation equipment.

Widely used in various corrosive working environmentswith chemicals.

Online Consultation

form

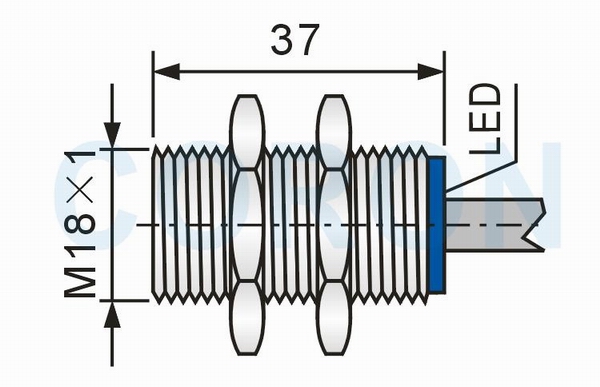

M18×1

Installation form

flush-mounted

Detection distance

5mm

Setting distance

0-4mm

NPN 3-wire

NO

CTJ-A18BM-5ANA

NC

CTJ-A18BM-5ANB

 ------

NPN 3-wire

NO

CTJ-A18BM-5APA

NC

CTJ-A18BM-5APB

N+C

 ------

Supply Voltage

10-30VDC

Current consumption

≤15mA

Output Current

≤200mA

Output Voltage Drop

≤1.5V

response frequency

≤500Hz

DC2-wire

NO

CTJ-A18BM-5ALA

NC

CTJ-A18BM-5ALB

Supply Voltage

 10-30VDC

Current consumption

≤1mA

Output Current

≤50mA

Output Voltage Drop

≤5V

response frequency

≤200Hz

Repeatability

<1 percent

Output indicator

red LED

environmental temperature

-25°C-+75°C

Environmental humidity

35-95%RH

Shell material

polytetrafluoroethylene

connection method

2m cable

protection class

IP68
