CTS Gear Speed Proximity Sensor CTS-A18M Gear Speed Proximity...

● Inductive proximity sensors detect metal.

● Cylindrical M18 thread, nickel-copper alloy housing, 2metre leads.

● Buried type, detection distance 5mm.

●NPN, PNP, DC two-wire output.

●Adoption of dedicated IC to achieveexcellent anti-interference performance.

● Red LED indicator shows the working status of thesensor.

● High response frequency up to 100 KHz.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

● Detection by metal objects on the shaft or directly onthe gears.

●Widely used for measuring the speed of gears, racks anddiscs.

Online Consultation

form

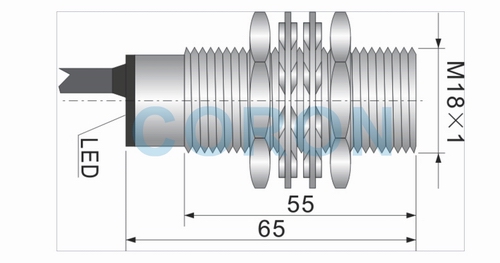

M18×1

Installation form

Unburied

Detection distance

5mm

Setting distance

0-4mm

NPN 3-wire

NO

CTS-A18M-5ANA

NC

CTS-A18M-5ANB

N+C

 ------

PNP 3-wire

NO

CTS-A18M-5APA

NC

CTS-A18M-5APB

N+C

 ------

Supply Voltage

10-30VDC

Current consumption

≤10mA

Output Current

≤100mA

Output Voltage Drop

≤1.5V

response frequency

≤100KHz

Repeatability

<1 percent

Output indicator

red LED

environmental temperature

-25°C-+75°C

Environmental humidity

35-95%RH

Shell material

Nickel-copper alloy

connection method

2m cable

protection class

IP67
